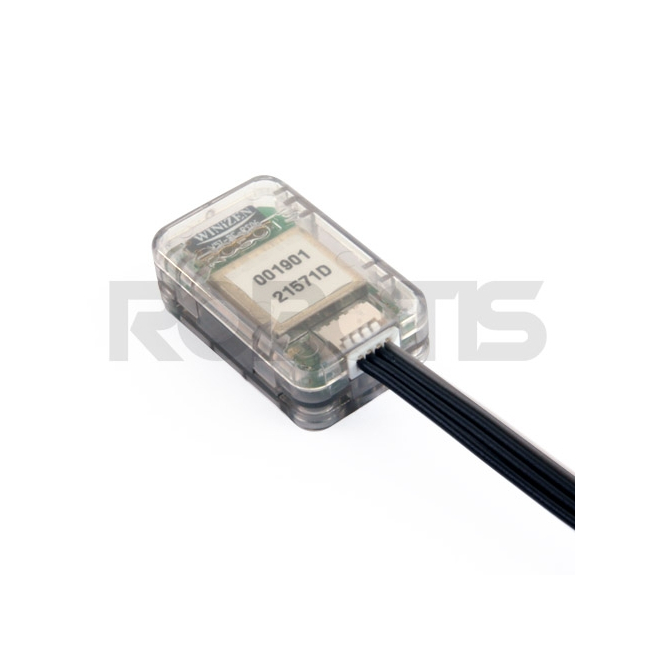

Robotis - BT-210

£35.80 £29.83

BT-210 is a device that enables serial communication (UART) via Bluetooth communication.

SKU
R-902-0076-000

Please note

  • Only contains only 1 slave module for assembling onto the robot.
  • The default pin code is 0000.
    Please refer to the e-Manual for more information on how to change the code.
  • Can be used to control the robot with devices that support Bluetooth communication.
    (i.e. smart phones, tablet PC, laptops, etc.)

Features

  •   BT-210 is a device that enables serial communication (UART) via Bluetooth communication.
  •   BT-210 has a case that protects the circuits and a connector-type cable that is used to connect the device onto the robot.

Basic Components

Components

Quantity

Wireless Communication Module

BT-210

(120mm cable included)

1

Specifications

Weight

4.51g

Size

18mm x 30mm x 9.1mm

Bluetooth Specifications

Bluetooth Specification 2.1 Support

Effective Communication Range

10 M(Class 2)

Bandwidth Frequency

2.4 GHz ISM Band

Bandwidth

MAX 250kbps

Default Baud Rate

57600bps

Sensitivity

-81dBm (Typical)

Transmit Power

4dBm (Typical)

Bluetooth Profile Support

SPP (Serial Port Profile)

Operating Voltage

3.3V

Consumed Current

48mA (Max)

Operating Temperature

-40C ~ 85C

Baud Rate Range

1,200bps - 400,000bps

Antenna

Chip Antenna

Interface  UART (3.3V Level)


Compatible Products

Controllers :

  •   CM-530 : wireless control, wireless downloading
  •   CM-510, CM-700 : wireless control (requires firmware update)

* NOT Compatible with :
  •   remote controller : RC-100, RC-100A
  •   controllers : CM-100, CM-5, CM-2+
