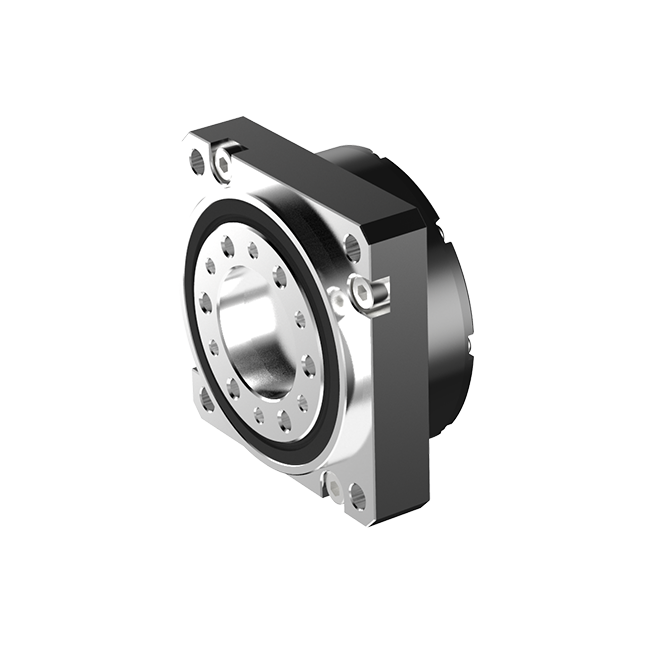

Robotis - DYD-11-051 - High-Precision gear
The DYNAMIXEL DRIVE (DYD) is a High-Precision gear with Superior Impact Resistance.
This product is produced after the order confirmation which takes 7 weeks from order to delivery.
SKU
R-902-0165-000
Features
The DYNAMIXEL DRIVE (DYD) is a High-Precision gear with Superior Impact Resistance.
The DYNAMIXEL DRIVE (DYD), a cycloid-based reducer, has been used in DYNAMIXEL-P series and based on this technology, ROBOTIS has released a compact DYNAMIXEL DRIVE (DYD) with excellent precision and reliability.
Package Components
| DYD-11-051 | 1 |
Input Shaft Option
*May select either Type-C / Type-D / Type-SC for purchase.
Specifications
| Properties | Unit | DYD-11-033 | DYD-11-051 |
| Gear ratio | - | 33 | 51 |
| Repeatable peak torque | Nm | 8.5 | 17.0 |
| Rated output torque | Nm | 2.2 | 3.5 |
| Maximum input speed | rpm | 6,000 | 6,000 |
| Average input speed | rpm | 2,000 | 2,000 |
| Hysteresis loss / Backlash | arcmin | <3.0 | <3.0 |
| Starting torque | cNm | 20 | 20 |
| Service life | hours | 3,000 | 3,000 |
| Dimension(W x H x D) | mm | 43 x 43 x 23.65 | 43 x 43 x 23.65 |
| Weight | g | 196 | 196 |
Efficiency
*The efficiency of DYD Drive can be affected by temperature and input speed.
*Test environment: Temperature 22ºC, Humidity 55%
