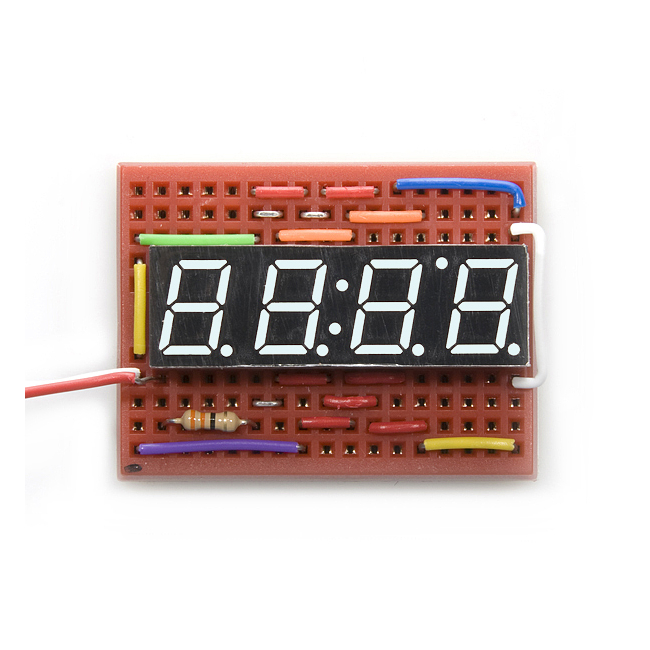

7-Segment Display - 4-Digit (White)

This is a basic 4-digit 7-segment display - white in color. It has a common anode. The display features one decimal point per digit and individually controllable apostrophe and colon points.The LEDs have a forward voltage of 1.9VDC and a max forward current of 20mA. The hardware interface is sixteen (two rows of eight) through-hole pinsThe datasheet for this device says "blue" but that's because the white display is simply a blue display with a colored film over it.We carry this same display in yellow green red and blue.Dimensions:Overall Display: 40.18 x 12.8 mm (1.58 x 0.50")Digit Height: 10mm (0.39")Documents:DatasheetDisplay Example Code
