DMP - eBox 3310MX-AP x86 Mini PC (Auto Power On, SATA, 3x RS232)

DMP - eBox 3310MX-AP Mini PC (Auto Power On, SATA, 3x RS232)

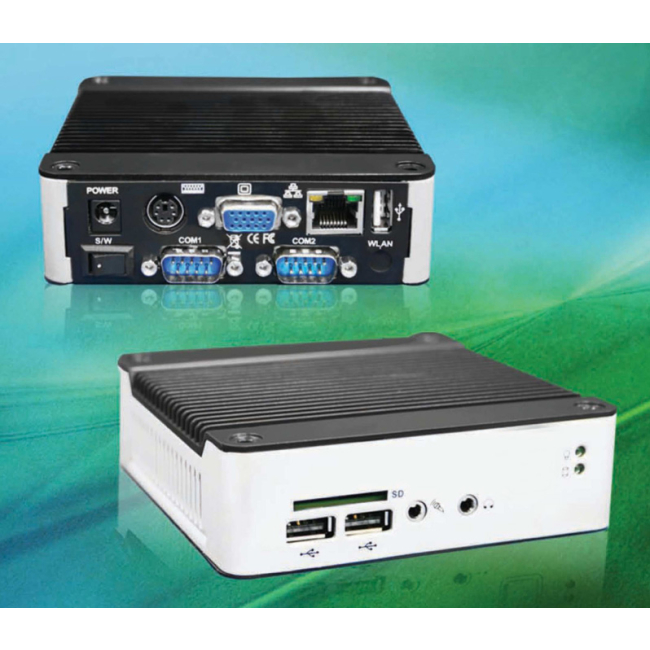

The eBox 3310MX is a complete PC with an i586 architecture. At its core you will find the Vortex86MX+ SoC featuring 32bit Memory bus, 1GB DDR2 RAM and support for 2.5" SATA HDD*.
The 3310MX includes 3x USB 2.0 ports, HD Audio (Audio In/Out), 1x Ethernet port, 1x VGA port and 3x RS232 ports. HDD is provided through an SD card slot or alternatively using a 2.5" SATA HDD* (the most performing option).

The eBox supports i586 operating systems including Linux, Windows XP, Windows CE and Windows Embedded Compact 7.

Model Type eBox 3310MX-AP Processor Vortex86MX+ (1Ghz): i586 Architecture BIOS AMI BIOS Memory 1GB DDR2 VGA Integrated Graphics Chip /D-Sub 15pin Ethernet 10/100 Mps LAN (RJ45), Built-in PXE diskless boot WiFi Optional USB 4x: 3x External + 1x Internal port Audio Mic In and Line Out SD Slot 1x SATA* 1x connector for 2.5" HDD (SATA HDD not included) PS/2 1x Serial 3x RS232 ports Port 1: provides full DB 9 pins Ports 2, 3: RX and TX (see Technical Note bellow) Power DC +8V ~15V Size 115 x 115 x 35 mm Weight 500g Operating temperature 5 ~ 50º C Certification CE, FCC, VCCI Supported OS'es Linux, Windows XP, Windows CE

eBox 3310MX applications:
The eBox line of products is suitable for Vertical Applications (Kiosk, POS, Thin Client) as well as SoHo applications such as Internet device, compact PC, Home Server, etc.

With its flexible IO (4x USB ports) and support for 2.5" HDD the eBox 3310MX is a versatile device offering an excellent price/performance relation.

The improvements made to the Vortex86MX+ - in particular the 32 bit memory bus -, 1GB DDR2 RAM and the support for SATA HDD make the 3310MX an appealing proposal for applications where more processing power is required.

In practice it can perform up to 2x faster than eBox 3350MX and up to 4x faster than Roboard 100. (refer to DMP comparison benchmarks)


Additional Resources and Documentation:

• eBox 33xxMX User Manual

• Performance Tips:
  • If using the SD card as the HDD, use Class 6 or Class 10 Full Size SD cards.
    EWF can also be enabled on Windows XP for improved performance.

  • To unleash maximum performance we recommend installing 2.5" SATA HDD* which offers a very significant performance boost.

• Linux Installation:
  • RoboSavvy Guide to Installing Ubuntu 10.04 LTS on eBox 33xxMX/MX+ devices
  • Files and Resources for Ubuntu
  • Linux Kernels for DMP Vortex86 SoC Devices
    (the DMP Kernels Enable LAN and HD Audio on Linux installations)

• Windows XP Installation:
  • RoboSavvy Guide to Installing Windows XP on eBox 33xxMX/MX+ devices
  • Device Drivers for Windows XP

• Other Operating Systems: see the Compactpc website.

• eBox 3310MX Brochure
• Complete eBox Product Catalogue
  (Robosavvy is a Distributor of eBox in the UK; if you need any particular model in the eBox catalogue that may not listed in our store, please contact sales@robosavvy.com to obtain a Quote and place your Order.)



Kit Contents:

• 1x eBox 3310MX-AP
• 1x 15V 1.5A Power Supply included (UK plug; other plug types available on large orders)
• 1x CD Rom with User Manual and Device Drivers

* eBox 3310MX models ship with built-in support for 2.5" SATA HDD but no SATA HDD is included; you can use any 2.5" SATA HDD or DMP's SATA Disk-on-Modules for Solid State Storage.
If you do not wish to use a SATA HDD, eBoxes can also boot from SD card. Simply insert an SD card, turn on the eBox and it will be recognized as normal/default Hard Drive.
