USB 3.1 Cable A to C - 3 Foot

USB 3.1 Cable A to C - 3 Foot

SparkFun Current Sensor Breakout - ACS723

SparkFun Current Sensor Breakout - ACS723

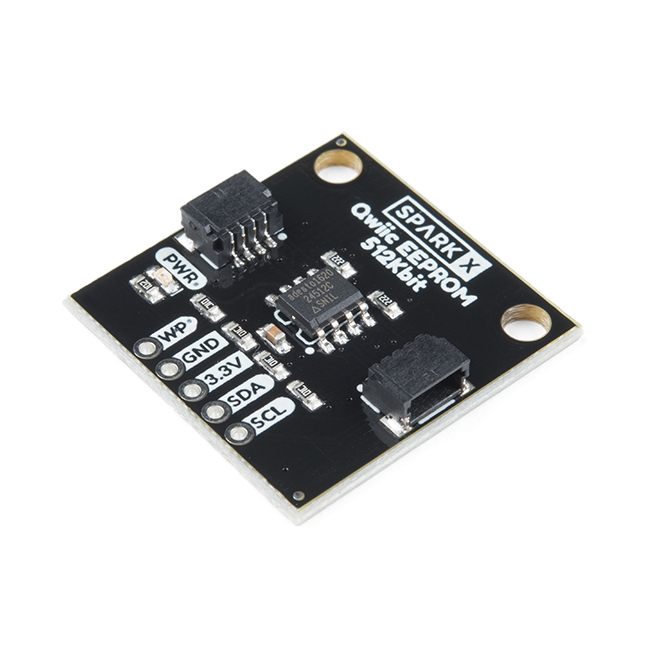

Qwiic EEPROM - 512Kbit

Be the first to review this product
£3.90 £3.25
Add some serious data storage to your latest project with this 512Kbit (64KB) EEPROM. Some flash based microcontrollers (like the SAMD21) do not have EEPROM. Use the Qwiic EEPROM for storing things like GPS waypoints and other user settings that need to be maintained between sketch uploads. Qwiic EEPROM has 3 address jumpers, allowing for up to 8 EEPROMs on one bus.
SKU
S-SPX-14764
Add to Wish List Add to Compare
Email

Add some serious data storage to your latest project with this 512Kbit (64KB) EEPROM. Some flash based microcontrollers (like the SAMD21) do not have EEPROM. Use the Qwiic EEPROM for storing things like GPS waypoints and other user settings that need to be maintained between sketch uploads. Qwiic EEPROM has 3 address jumpers, allowing for up to 8 EEPROMs on one bus.

We've written a great Arduino library to make using this and any EEPROM easy to use. Check it out by searching 'SparkFun EEPROM' from the Arduino library manager or by downloading the repo directly.

This board is one of our many Qwiic compatible boards! Simply plug and go. No soldering, no figuring out which is SDA or SCL, and no voltage regulation or translation required!

We do not plan to regularly produce SparkX products so get them while they’re hot!

Note: The I2C address of the EEPROM - 512Kbit is 0x50 and is jumper selectable to 0x51, 0x52, 0x53, 0x54, 0x55, 0x56, or 0x57. A multiplexer/Mux is required to communicate to multiple EEPROM - 512Kbit sensors on a single bus. If you need to use more than one EEPROM - 512Kbit sensor consider using the Qwiic Mux Breakout.

Experimental Product: SparkX products are rapidly produced to bring you the most cutting edge technology as it becomes available. These products are tested but come with no guarantees. Live technical support is not available for SparkX products. Head on over to our forum for support or to ask a question.
Need a custom board? This component can be found in SparkFun's À La Carte board builder. You can have a custom design fabricated with this component - and your choice of hundreds of other sensors, actuators and wireless devices - delivered to you in just a few weeks.

Documents:
