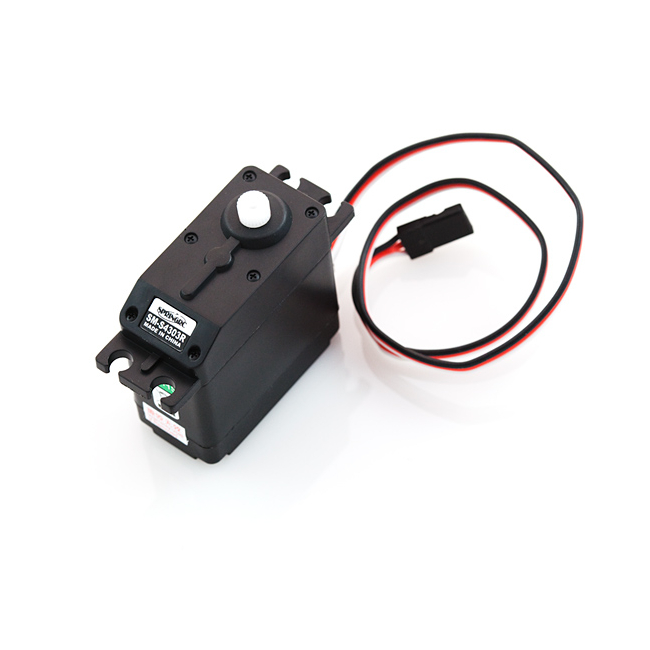

Servo - Generic High Torque Continuous Rotation (Standard Size)

Here, for all your mechatronic needs, is a simple, high quality continuous continuous rotation servo motor. This servo is able to take in 6 volts and deliver 66.7 oz-in. of maximum torque at 70 r/min.

A standard 3-pin power and control cable is attached and all hardware listed below is included.

Features:

• Voltage: 4.8-6.0 Volts
• Torque: 45.8/66.7 oz-in. (4.8/6.0V)
• Speed: 60/70 r/min (4.8/6.0V)
• Rotation: 360°
• Dual Ball Bearing
• 4 Plastic Gears + 1 Metal Gear
• 25T Spline
• Rest point adjustment

Includes:

• 1x SM-S4303R High Torque Continuous Rotation Servo
• 1x Mounting Screw
• 1x Four Point Horn
• 1x Six Point Horn
• 2x Double Arm Horn (1x Large, 1x Medium)
• 2x Circle Horn (1x Large, 1x Medium)
• 4x Rubber Grommets
• 4x 2x15mm Phillips Screw
• 4x Brass Eyelets

Dimensions:

• 42 x 39.5 x 22.5mm
• Wire length: 300mm
• Weight: 44g

Documents:

• Datasheet
