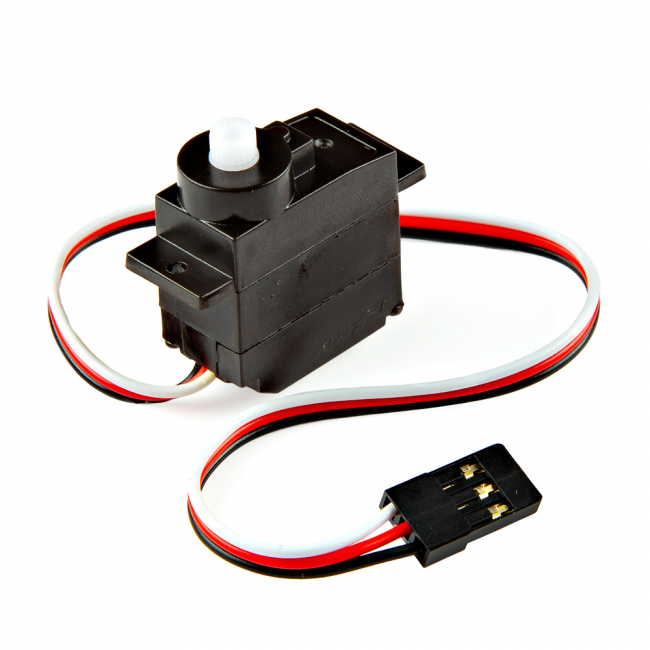

Servo - Generic, 180° Rotation (Sub-Micro Size)

Here is a simple, low-cost servo for all your mechatronic needs. This little guy is able to take in 6 volts and deliver 1.5kg/cm (at 6V). of maximum torque at 0.09 sec/60° (at 6V).

This small servo comes with a standard 3 pin power and control cable, six arms and six screws.

Note: This is the same servo used with the XRP kits Beta & DIY

Includes:

• 1x Micro Size Servo
• 2x Single Arm Micro Horn
• 2x Double Arm Micro Horn
• 2x Four Point Micro Horn
• 4x 2x8mm Phillips Screw
• 2x 2x6mm Phillips Screw

Features:

• Voltage: 4.8-6.0 Volts
• Torque: 1.2kg/cm (at 4.8V), 1.5kg/cm (at 6V)
• Speed: 0.11sec/60° (at 4.8V), 0.09sec/60° (at 6V)
• Current: < 500mA
• Rotation: 180°
• Operating Temperature: 0 ℃ - 60 ℃
• Standard Signal: 1000~2000 microseconds
• Deadband Setting: 4 usec
• Motor Type: Iron Core
• Gear Type: Plastic
• Dimensions: 23.1 x 11.9 x 26.0 mm
• Wire Length: 180mm
• Weight: 9g

Documents:

• Datasheet
