Servo - Generic Metal Gear (Micro Size)

Here is a simple, low-cost, high quality servo for all your mechatronic needs. This servo is able to take in 6 volts and deliver 44.4 oz-in. of maximum torque at 0.18 sec/60°

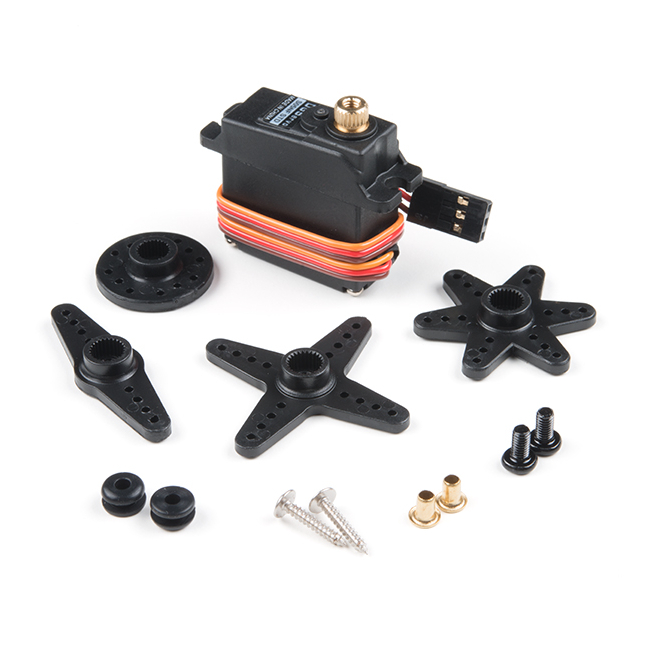

This is a small servo with a standard 3 pin power and control cable (red = power, brown = ground, and yellow = data), and all hardware listed below.

Features:

• Voltage: 4.8-6.0 Volts
• Torque: 38.8/44.4 oz-in. (4.8/6.0V)
• Speed: 0.20/0.18 sec/60° (4.8/6.0V)
• Rotation: 160°
• Metal Gears* 28.8 x 13.8 x 30.2mm
• Wire Length: 180mm
• Weight: 20g

Documents:

• Hobby Servo Tutorial
• Datasheet
