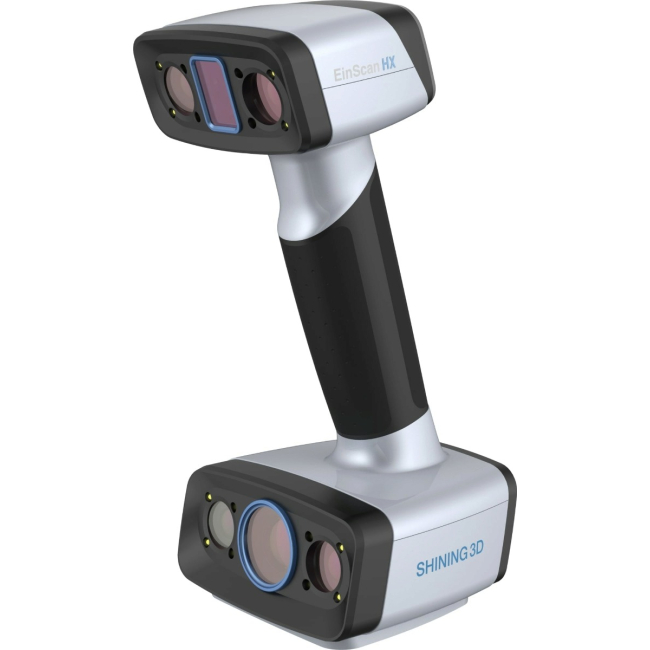

Shining 3D - EinScan HX - Standlone 3D Scanner

£8,886.00 £7,405.00

Hybrid Blue Laser & LED Light Source

Handheld 3D Scanner

Includes:

  • Transport Case
  • Solid Edge S3D Edition



SKU
S3D-000034

Hybrid Blue Laser & LED Light Source

Handheld 3D Scanner

Based on years of 3D measurement experience and market demand, SHINING 3D innovatively integrates blue LED light and blue laser into EinScan HX handheld 3D scanner. The hybrid laser and LED light sources make EinScan HX compatible with a wider range of object sizes, meeting multiple needs of users. High efficiency and reliable result give EinScan HX more application possibilities.

Hybrid Blue Laser & LED Light

Innovatively integrated with dual blue LED light and blue laser, improves scanning materials adaptability with less limitation for a wider range of applications. LED light scanning allows rapid 3D scanning. Laser scanning, which is less sensitive to ambient light, gives better performance to reflective and dark color surface.

Reliable Results

The high resolution and accuracy meet the needs of most industrial applications for reverse engineering and measuring.

Minimum point distance 0.05 mm

Accuracy up to 0.04 mm under Laser Scan

High Efficiency

Processing speed of EinScan HX under Rapid Scan Mode is up to 1,200,000 points/s, and multiple blue laser lines under Laser Scan Mode makes scanning of most objects in minutes for reverse engineering,

Portable & Easy Operation

EinScan HX is plug and play with user friendly software, which is easy to operate, no matter you are newbie or with professional experience in 3D scanning. The portability and flexibility use of EinScan HX has been considered to its ergonomic design for a more efficient and comfortable scanning experience.

Ergonomic Design

Weight:710g

Full Color

With built-in color camera, it supports full color texture capturing and tracking by texture.

EinScan HX Reverse Engineering Design Bundle

A hybrid light source 3D scanner with reverse engineering and CAD capabilities.

Showcase

Videos

Specifications

Scan Mode Rapid Scan Laser Scan
Scan Accuracy Up to 0.05mm Up to 0.04mm
Volumetric Accuracy* 0.05+0.1mm/m 0.04+0.06mm/m
Scan Speed 1,200,000 points/s
20FPS
480,000 points/s

55FPS

Camera Frame Rate 55FPS 55FPS
Align Mode Feature Alignment、Markers Alignment、Texture Alignment、Hybrid Alignment Markers Alignment
Working Distance 470mm 470mm
Depth of Field 200mm-700mm 350mm-610mm
Max FOV 420mm*440mm 380mm*400mm
Point Distance 0.25mm-3mm 0.05mm-3mm
Light Source Blue LED 7 Blue Laser Crosses
Safety Eye-safe Class I(Eye-safe)
Built-in Color Camera Yes
Texture Scan Yes (Built-in Color camera) No
Connection Standard USB3.0
Output Formats OBJ;STL;ASC;PLY;P3;3MF
Dimensions 108mmx110mmx237mm
Weight 710g
Operating Temperature Range 0-40℃
Operating Humidity Range 10-90%
Certifications CE,FCC,ROHS,WEEE,KC
Required Configuration OS: Win10, 64-bit; Graphics card: NVIDIA GTX1080; Video memory: ≥4GB; Processor: Intel I7-8700; Memory: ≥16GB

* Volumetric accuracy refers to the relationship between 3D data accuracy and object size; the accuracy is reduced by 0.1mm(rapid scan)/0.06mm(laser scan) per 100cm.The conclusion is obtained by measuring the center of sphere under marker alignment.

More Info

More Information
Texture No
