SparkFun Analog MEMS Microphone Breakout - ICS-40180

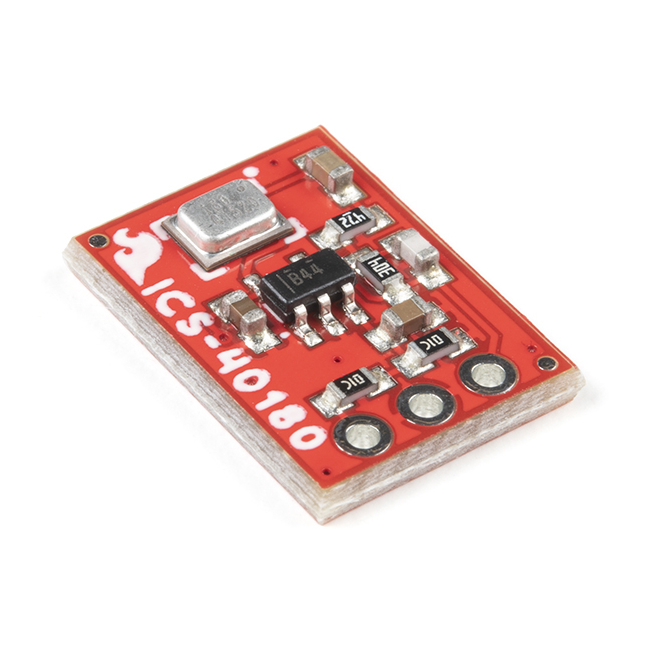

The SparkFun Analog MEMS Microphone Breakout makes it easy to work with the InvenSense ICS-40180 analog microphone. This board features an OpAmp to bring the output of the microphone to a usable level, allowing you to plug directly into an ADC on a microcontroller or something like the SparkFun Spectrum Shield.

In addition to amplifying the signal, the OpAmp adds a bias voltage of 1/2 VCC. With sound sources such as a normal speaking voice a few feet away from the microphone, the AUD output signal will be at about 200mV peak-to-peak. Also note, this low profile microphone has its port on the bottom side, so the microphone can be mounted flush to the outer surface of your enclosure. This microphone is omni-directional, which means it does a good job of picking up sound sources from all directions.

Features:

• -3dB roll off at 60Hz and 19.7kHz
• 1.5VDC to 3.6VDC supply voltage
• Should comfortably output 40mW
• OPA344 provides 600Ω output impedance
• SNR of 65dBA

Documents:

• Schematic
• Eagle Files
• Board Dimensions
• Hookup Guide
• Datasheet (ICS-40180)
• GitHub Hardware Repo
