SparkFun LiPo Charger Plus

Special Price £5.74 £4.78 Regular Price £8.60
SKU
S-PRT-15217
Brand
SparkFun

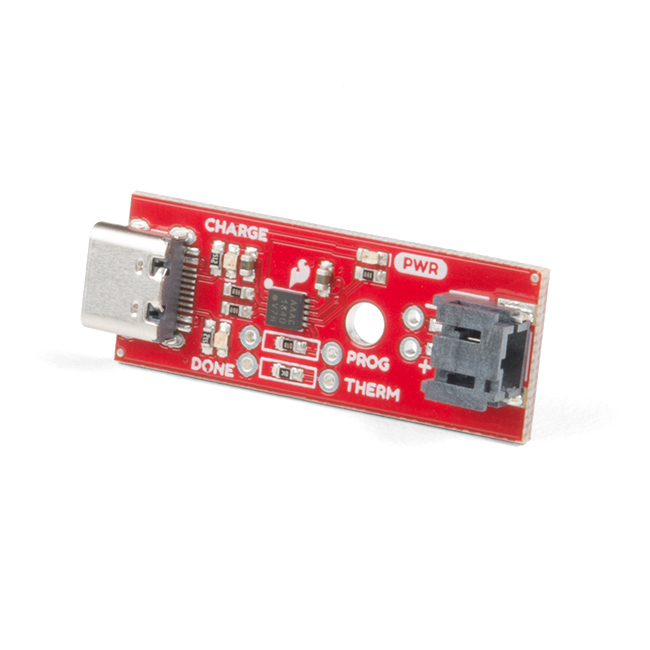

The SparkFun LiPo Charger Plus is the souped-up power option in the SparkFun line of single-cell lithium polymer (LiPo) battery chargers. With this iteration, we've changed the input charge connector to USB-C and provided charge rate selection as well as optional thermal protection. Charge, power, and done LEDs clearly indicate the status of your charging process. This board can be used for any of the 2-pin JST connector single cell LiPo batteries we carry.

With an input voltage between 3.75V-6V, the MCP73833 can charge up to a maximum rate of 1000mAh and provides two forms of thermal protection. An internal sensor maintains maximum charging rate until the die temperature of the IC reaches ~95°C; the charge controller will then reduce the charge rate to prevent overheating. The MCP73833 also has an optional input pin for an NTC (negative-temperature coefficient) thermistor, thus gating the battery against possible damage.


Need a custom board? This component can be found in SparkFun's À La Carte board builder. You can have a custom design fabricated with this component - and your choice of hundreds of other sensors, actuators and wireless devices - delivered to you in just a few weeks.

Features:

  • Complete Linear Charge Management Controller
    • Integrated Pass Transistor
    • Integrated Current Sense
    • Integrated Reverse Discharge Protection
  • Constant Current / Constant Voltage Operation with Thermal Regulation
  • Programmable Charge Current: 1A Maximum
  • High Accuracy Preset Voltage Regulation:
    • 4.2V + 0.75%
  • Preconditioning of Deeply Depleted Cells
    • Selectable Current Ratio
    • Selectable Voltage Threshold
  • Cell Temperature Monitor
  • Low-Dropout Linear Regulator Mode
  • Supply Voltage: 3.75V-6V
