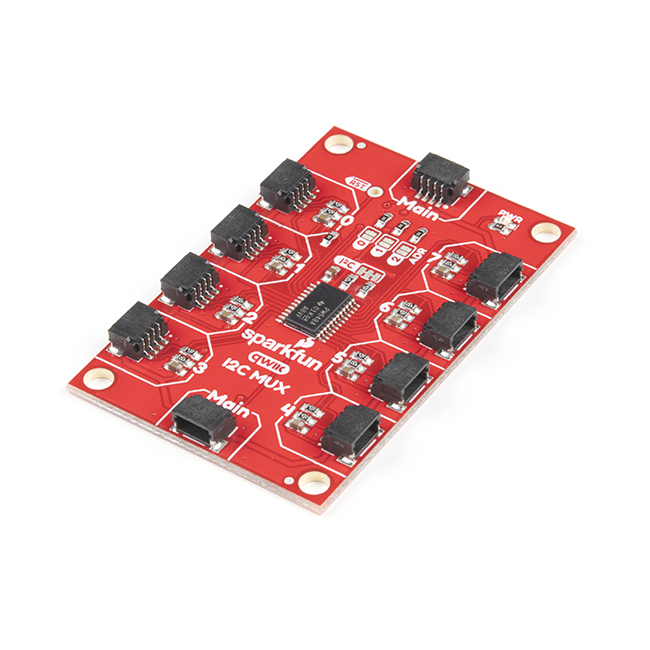

SparkFun Qwiic Mux Breakout - 8 Channel (TCA9548A)

Do you have too many sensors with the same I²C address? Put them on the SparkFun Qwiic Mux Breakout to get them all talking on the same bus! The Qwiic Mux Breakout enables communication with multiple I²C devices that have the same address that makes it simple to interface with. The Qwiic Mux also has eight configurable addresses of its own, allowing for up to 64 I²C buses on a connection. To make it even easier to use this multiplexer, all communication is enacted exclusively via I²C, utilizing our handy Qwiic system.

The Qwiic Mux also allows you to change the last three bits of the address byte, allowing for eight jumper selectable addresses if you happen to need to put more than one Qwiic Mux Breakout on the same I²C port. The address can be changed by adding solder to any of the three ADR jumpers. Each SparkFun Qwiic Mux Breakout operates between 1.65V and 5.5V making it ideal for all of the Qwiic boards we produce in house.

The SparkFun Qwiic Connect System is an ecosystem of I²C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can’t hook it up wrong.

The Qwiic Mux can also be automatically detected, scanned, configured, and controlled using the OpenLog Artemis datalogger system. No programming, soldering, or setup required!

Features:

• Operating Voltage: 1.65V - 5.5V
• Operating Temperature: -40 - 85° C
• I²C Address: 0x70 (default) up to 0x77
• 10x Qwiic Connectors
  • 2x Pass Through (Daisy Chain)
  • 8x Channels

Documents:

• Schematic (v1.1)
• Eagle Files (v1.1)
• Hookup Guide
• Board Dimensions (v1.1)
• TCA9548A Datasheet (TCA9548A)
• SparkFun I2C Mux Arduino Library
• SparkFun TCA9548A Python Package
  • ReadtheDocs Documentation
• Qwiic Resource Page
• GitHub Hardware Repository (v1.1)
