Unitree - B2 Quadruped Robot Dog

From £95,760.00 £79,800.00

To £104,083.85 £86,736.54

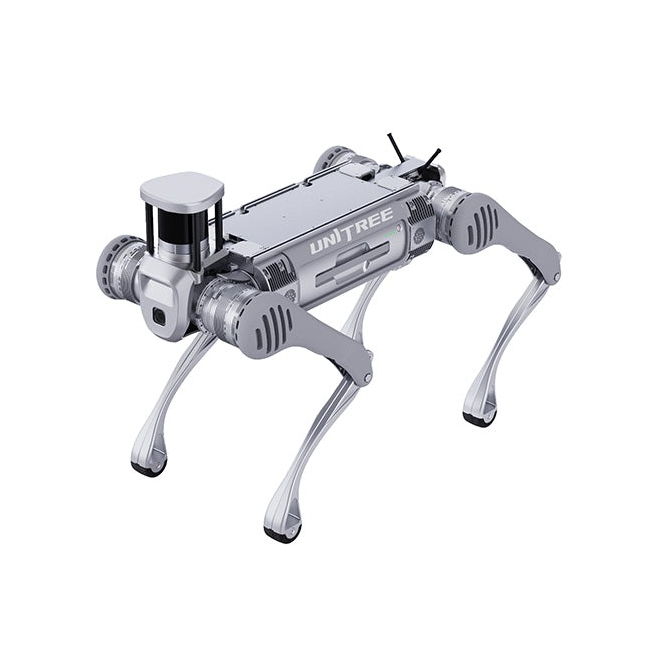

Introducing the Unitree B2, a new and improved interactive bionic quadruped robot designed to meet the high-level needs of industrial applications.

With its advanced features, the B2 is engineered to navigate complex environments efficiently.

This industrial protection level robot offers cutting-edge technology to enhance productivity and performance in various industrial settings, making it an ideal solution for diverse applications.

SKU
UNI-B2BUN
Customize Unitree - B2 Quadruped Robot Dog

* Required Fields

Your Customization
Unitree - B2 Quadruped Robot Dog
Unitree - B2 Quadruped Robot Dog

In stock

£95,760.00 £79,800.00

Summary

    Unitree B2

    Go Beyond the Limits

    Lead The Industry Application

    Fastest industrial-grade quadruped robot

    Running at 6m/s

    All-rounded to cope with a variety of environments

    Excellent terrain adaptability to ensure stable travel on slippery or uneven surfaces.

    Climbing stairs as if they were flat.

    Excellent sustained stair climbing, effortlessly tackling steps.

    Remains extremely stable and balanced when climbing.

    170% increase in joint performance with 360 N.m of torque

    Extreme performance provids greater flexibility and stability for industrial operations.

    Overcoming obstacles. Stable and tough.

    Superior obstacle-crossing ability, easy to cross the mess of wood piles, 40cm high platforms and other obstacles

    100% increase in sustained load 200% increase in endurance

    100% increase in continuous walking with load greater than 40kg;

    Continuous walking with 20kg load can last for greater than 4 hours with over 15km mileage.

    200% increase in endurance;

    unloaded continuous walking endurance greater than 5 hours with more than 20km mileage

    Wheeled and Legged Forms

    Breaking Through Endurance Limitations

    Innovative structural design of the B2 realizes switching between legged and wheeled forms (optional).

    Plug-in Battery - Stable and Reliable Autonomous Charging

    B2 battery supports quick change and also supports autonomous charging solutions(optional),suitable for a wide range of solutions.

    Unitree B2

    Full-scene Adaptation, All-around Robot



    Max Running Speed

    ~6m/s

    Max Joint Torque

    About 360N.m

    Longest Jump Distance

    ~1.6m




    Ultra Load

    Standing load: 120kg max.

    Continuous walking load >40kg

    Max Walking Capacity

    Obstacle crossing: Max 40cm

    Slope angle > 45°

    Ultra Long Endurance

    Continuous walking without load >5h

    20kg load continuous walking >4h





    Unitree B2 The Ubiquitous All-around Assistant

    Leading Industrial Intelligence in All Scenarios.


    Emergency Rescue

    Working on all-terrain like Long Stairs, Rock Piles, Steep Slopes, etc.


    Power Inspection

    Intelligent Power Solutions Industry Application Leader


    Industrial Inspection

    Infrared Scanning 3DMapping Optimized environmental perception

    Unitree B2

    Brand New Intelligent Robot


    Size(Standing) ≈ 1098mm×450mm×645mm
    Size(Lying Prone) ≈ 880mm×460mm×330mm
    Weight ≈ 60kg Total weight (battery included)
    Battery Performance Battery capacity 45Ah(2250Wh),voltage 58V
    Endurance Ability Battery life 4-6h
    Walking without load > 5h, and the mileage > 20km
    Walking with 20kg load > 4h, and the mileage> 15km
    Wheeled Foot Optional
    Load(Standing) Max. 120kg
    Load(Walking) > 40kg
    Continuous Stair Climbing Stairs of 20~25cm
    Single Obstacle Crossing Climb up and down stairs of 40cm in forward direction
    Operating Temperature -20℃ ~ 55℃
    Climbing Angle > 45°
    Running Speed > 6m/s [1]
    Ditch Jumping Width 0.5~1.2m
    Max Jump Distance > 1.6m
    Ingress Protection IP67
    Control and Perception intel Core i5×1,intel Core i7×3,Nvdia Jetson Orin NX×1 (Varies with different configurations)
    Sensing Sensor 3D LiDAR ×1 + Depth camera ×2 + Optical camera ×2 (Varies with different configurations)
    Interface 1000M-Base-Ethernet×4 USB3.0×4
    12V×4 5V×1 24V×4 BAT×1

    *[1]: realized in special configurations, in practice there is a speed limit for security purposes

    *Part of the function requires human operation or secondary development to realize, different configurations vary.

    *The above parameters may vary in different application scenarios and different configurations, please refer to the actual situation.
