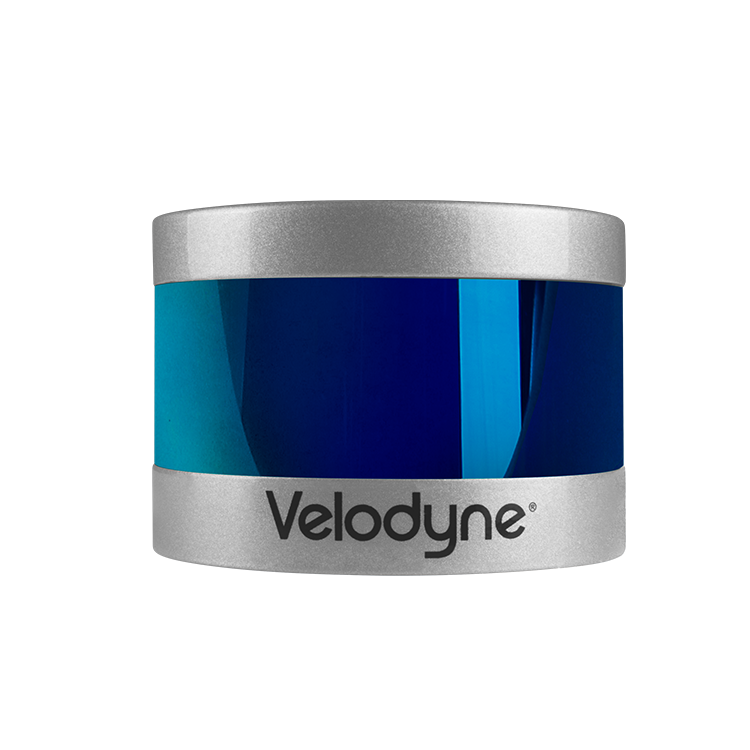

Velodyne - Puck Hi-Res Lidar

Focused Performance


A variation of Velodyne’s groundbreaking Puck, the Puck Hi-Res is designed for applications requiring greater image resolution. While retaining the Puck’s surround view and best-in-class range, the Puck Hi-Res™ sensor delivers a 20° vertical field-of-view for a tighter channel distribution.

SKU
VLD-80-VLP-16-HI-RES-A

Puck Hi-Res

  • 100 m range with compact form factor
  • Higher resolution option in the Puck family
  • Proven, Class 1 eye-safe 905 nm technology
  • Best-in-class accuracy and calibrated intensity
  • Best-in-class power & temperature range
  • Sensor-to-sensor interference mitigation feature
  • Versatile, with attractive volume pricing
  • Higher Resolution at Greater Distances

    This sensor’s design produces more image details at longer ranges to optimize object detection and identification.

    Patented Surround View Technology

    The Puck Hi-Res, built on Velodyne’s ‘558 patent, provides a full 360-degree environmental view to deliver accurate real-time 3D data.

    TRUSTED BY



    “When I’m out in one of our test units, running in autonomous mode, it gives me confidence to be able to watch other areas of the tillage process while Velodyne’s eyes are on the road ahead. This takes a lot of the stress out of the field operation.”

    TRUSTED BY



    NAVYA is a French leader in autonomous driving systems. With more than 270 employees in France (Paris and Lyon) and the United States (Michigan), NAVYA designs, manufactures and commercializes autonomous, driverless, and electric vehicles that combine robotic, digital and driving technologies at the highest level.

    TRUSTED BY



    Local Motors by LMI is a digital OEM, capable of micro-manufacturing, sales, service and operations all from a local footprint using a microfactory – which can be distributed to major customer centers across the globe.

    TRUSTED BY



    Autonomous Stuff provides the world’s best autonomy-enabling technologies and world class services. We have the products needed to get your projects up and running.



    Key applications

    ADAS

    Robotics


    Technical Specifications


    Range 100m
    Range Accuracy Up to ±3 cm (Typical)
    # of Lines 16
    Horizontal FoV 360°
    Vertical FoV 20°
    Horizontal Resolution 0.1° – 0.4°
    Vertical Resolution 1.33° (min)

    Points Per Second

    (Single Return Mode)

    ~ 300,000

    Points Per Second

    (Dual Return mode)

    ~ 600,000
    Refresh Rate 5-20 Hz
    Operating Voltage 9 V – 18 V
    Power Consumption 8 W (Typical)

    Weight

    (without cabling)

    ~830 g
    Operating Temp -10°C to +60°C
    Storage Temp -40°C to +105°C
    Output UDP packets over Ethernet
    Ethernet Connection 100 Mbps
    GPS Timesync $GPRMC + $GPGGA
    Laser 903nm Class 1 eye safe
    Water Resistance IP67

    Downloads


  • Interface Box Manual (VLP-16 & HDL-32E)
  • Puck Hi-Res Angular Correction File
  • Puck Envelope Drawing (2D PDF)
  • Puck Envelope CAD (3D File)
  • Puck Wiring Diagram
  • Puck Firmware (Most recent version: 3.0.41.1)
  • Puck Firmware Release Notes
  • Interface Box Lid Models
  • Interface Box Models
  • More Information
    Manufacturer Velodyne
    Range 100m
    Power Comsumption 8 W (Typical)
    Weight ~830 g
    Operating Temp -10°C to +60°C
    Storage Temp -40°C to +105°C
    Output UDP packets over Ethernet
    Ethernet Connection 100 Mbps
    GPS Timesync $GPRMC + $GPGGA
    Laser 903nm Class 1 eye safe
    Operating Voltage 9 V – 18 V
    Refresh Rate 5-20 Hz
    Range Accuracy Up to ±3 cm (Typical)
    # of Lines 16
    Horizontal FoV 360°
    Vertical FoV 20°
    Horizontal Resolution 0.1° – 0.4°
    Vertical Resolution 1.33°
    Points Per Second (Single Return Mode) ~ 300,000
    Points Per Second (Dual Return Mode) ~ 600,000
    Water Resistance IP67
