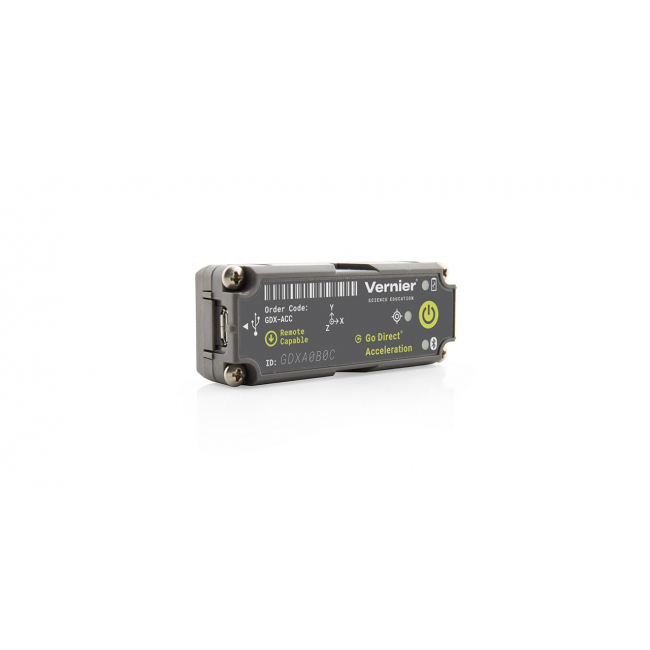

Vernier - Go Direct Acceleration Sensor

This 3-axis acceleration sensor has two acceleration ranges plus an altimeter and a 3-axis gyroscope. An additional channel measures the angle of the sensor’s long axis.

• Measure helmet impacts in concussion-related investigations.
• Slip it into your pocket and pirouette or ride a half-pipe.
• Mount this accelerometer on your bicycle or affix it to your lab cart without any dragging cables.

Remote Data Logging—Go Beyond Wireless Limits!

This Go Direct sensor is capable of remote data logging! This feature allows sensors to store data directly to their internal memory—ideal for investigations that extend beyond typical connection ranges like long-term environmental monitoring or rocket launches. It works seamlessly with our award-winning Vernier Graphical Analysis^® app so students can visualize their data and make key connections between abstract science concepts and real-world phenomena. Learn more about remote data logging.

Rechargeable Battery—Ready When You Are

The robust rechargeable battery offers long battery life and provides always-ready operation when using the sensor wirelessly. Monitor battery life directly from our award-winning Vernier Graphical Analysis^® app, as well as LabQuest^® 3. Should the battery run low, simply connect the sensor to the charging cable and keep on collecting—no interruptions or inconvenience to you or your students.

Wireless or Wired—The Flexibility to Choose

Our Go Direct sensors connect directly to your mobile device, Chromebook^™, or computer using our Vernier Graphical Analysis^® app—no additional equipment or software purchases are necessary. Go Direct sensors can be used wired via USB or wirelessly via Bluetooth^® wireless technology, allowing you to choose the best solution for your classroom or laboratory.

Additional Videos

Specifications

• Range:
  • Low acceleration: ±157 m/s² (±16 g)
  • High acceleration: ±1,960 m/s² (±200 g)
  • Gyros: ±35 rad/s (±2000 °/s)
  • Altimeter: –1,800 m to 10,000 m (-5,900 ft to 33,000 ft)
  • Angle: ±180°
• Connections:
  • Wireless: Bluetooth
  • Wired: USB

Requirements

Choose a platform below to see its compatibility requirements.

LabQuest

Compatibility Notes

1. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter (discontinued) when used with some older LabQuest 2 models.

Computers

Compatibility Notes

1. Connect this sensor directly to a computer or Chromebook via a USB or wireless Bluetooth^® connection for best results. Alternatively, this sensor is fully supported when used with LabQuest 2 or LabQuest 3 when the LabQuest is connected via Wireless Data Sharing.
2. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter (discontinued) when used with some older LabQuest 2 models.

Chromebook

iOS

Compatibility Notes

1. Connect this sensor directly to a supported mobile device via a wireless Bluetooth^® connection for best results.
2. iOS and Android^™ devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
3. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter (discontinued) when used with some older LabQuest 2 models.

Android

Compatibility Notes

1. iOS and Android^™ devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
2. Connect this sensor directly to a supported mobile device via a wireless Bluetooth^® connection for best results.
3. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter (discontinued) when used with some older LabQuest 2 models.

Python

Javascript

Compatibility Notes

1. A wireless Bluetooth^® connection can be made with Go Direct sensors on any platform running a browser with WebBluetooth support. However, only a few operating systems have been tested and testing has been limited.

Arduino

LabVIEW

What's Included

• Go Direct Acceleration
• Micro USB Cable
• Shim plate for cart
• U-bracket for cart
• Cylinder mounting plate
• Quick-start guide
