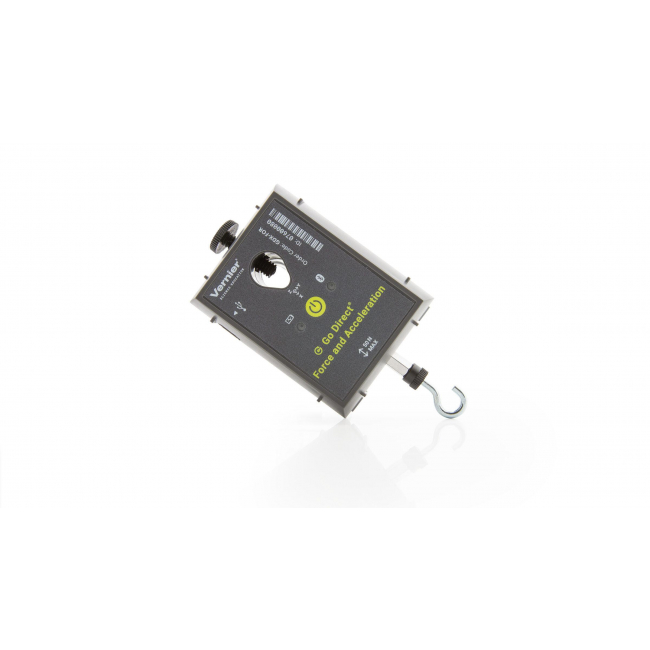

Vernier - Go Direct® Force and Acceleration Sensor

The Go Direct Force and Acceleration Sensor includes a force sensor, 3-axis accelerometer, and 3-axis gyroscope. Take it on a roller coaster, swing, or slide. Suspend several Go Direct Force and Acceleration Sensors from the ceiling to perform a 3-D vector force experiment, or attach a string to the hook and whirl it in a horizontal or vertical circle. In wireless mode, your imagination is the only limiting factor!

Go Direct Force and Acceleration can be used in a variety of experiments:

• Investigate Newton’s Third Law by connecting the hooks of two force sensors with a rubber band.
• Use the force sensor to pull an object across a surface to measure frictional forces.
• Attach the force sensor to the Centripetal Force Apparatus to measure centripetal force and acceleration simultaneously.
• Place sensors on Dynamics Carts to investigate forces and accelerations in collisions.
• Connect to Scratch 3 and enhance your activity with sensor input to control your sprite.

Rechargeable Battery—Ready When You Are

The robust rechargeable battery offers long battery life and provides always-ready operation when using the sensor wirelessly. Monitor battery life directly from our award-winning Vernier Graphical Analysis^® app, as well as LabQuest^® 3. Should the battery run low, simply connect the sensor to the charging cable and keep on collecting—no interruptions or inconvenience to you or your students.

Wireless or Wired—The Flexibility to Choose

Our Go Direct sensors connect directly to your mobile device, Chromebook^™, or computer using our Vernier Graphical Analysis^® app—no additional equipment or software purchases are necessary. Go Direct sensors can be used wired via USB or wirelessly via Bluetooth^® wireless technology, allowing you to choose the best solution for your classroom or laboratory.

Specifications

• Force: ±50 N
• Acceleration: 3 axis, ±16 g
• Gyroscope: 3 axis, 2000°/s
• Accuracy: ±0.2 N when calibrated
• Connections:
  • Wireless: Bluetooth
  • Wired: USB

Experiments

Elementary School (8 experiments)

Middle School (14 experiments)

High School (27 experiments)

College (21 experiments)

Requirements

Choose a platform below to see its compatibility requirements.

LabQuest

Compatibility Notes

1. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter (discontinued) when used with some older LabQuest 2 models.

Computers

Compatibility Notes

1. Connect this sensor directly to a computer or Chromebook via a USB or wireless Bluetooth^® connection for best results. Alternatively, this sensor is fully supported when used with LabQuest 2 or LabQuest 3 when the LabQuest is connected via Wireless Data Sharing.
2. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter (discontinued) when used with some older LabQuest 2 models.

Chromebook

iOS

Compatibility Notes

1. Connect this sensor directly to a supported mobile device via a wireless Bluetooth^® connection for best results.
2. iOS and Android^™ devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
3. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter (discontinued) when used with some older LabQuest 2 models.

Android

Compatibility Notes

1. iOS and Android^™ devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
2. Connect this sensor directly to a supported mobile device via a wireless Bluetooth^® connection for best results.
3. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter (discontinued) when used with some older LabQuest 2 models.

Python

Javascript

Compatibility Notes

1. A wireless Bluetooth^® connection can be made with Go Direct sensors on any platform running a browser with WebBluetooth support. However, only a few operating systems have been tested and testing has been limited.

Arduino

LabVIEW

What's Included

• Go Direct Force and Acceleration Sensor
• Hook
• Bumper
• Nylon screw
• Accessory Rod
• Micro USB Cable
