Wide Band 4G LTE Internal LoRa Antenna

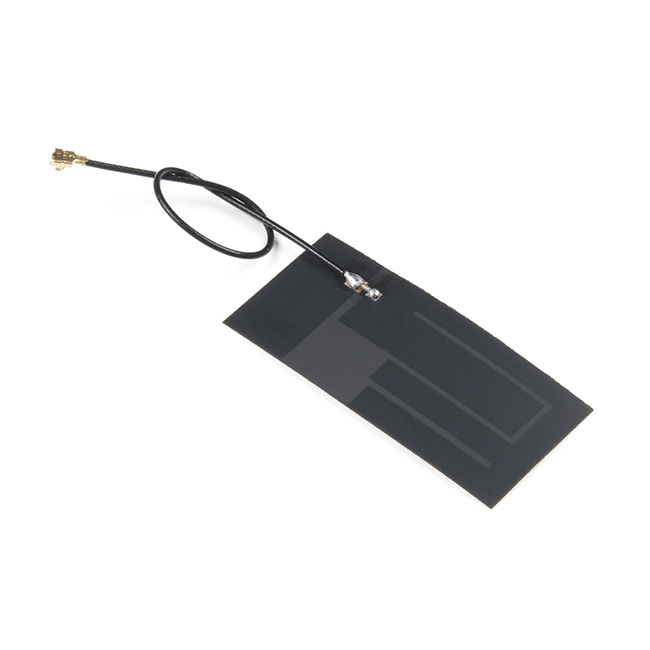

A Wide Band, 700-2700Mhz frequency range, 4G LTE antenna provides a wide enough range for a number of applications including BLE & LoRa/RF. This antenna is 53mm x 24mm with a 100mm length coaxial cable ending in an IPEX (u.FL equivalent) connector. The antenna has a 3M adhesive backing making it easy to fix it to your project.

If you are looking for a board to use this antenna with, we highly recommend our SparkFun LoRa Thing Plus – expLoRaBLE board!

Features:

• Frequency range: 700-2700Mhz
• Gain: 8dBi internal antenna
• VSWR: ≤1.8
• Input impedance: 50Ω
• Material: Radiator FPC
• Antenna Size: 53*24mm
• Length: 100mm
• Cable type: 1.13 coaxial cable
• Connector style: IPEX (u.FL equivalent)
• Polarization: Vertical
• Power: 30w
• Mounting: 3M sticker
• Operation Temperature: - 40 °C ~ + 80 °C
• Storage Temperature: - 40 °C ~ + 80 °C

Documents:

• Datasheet
