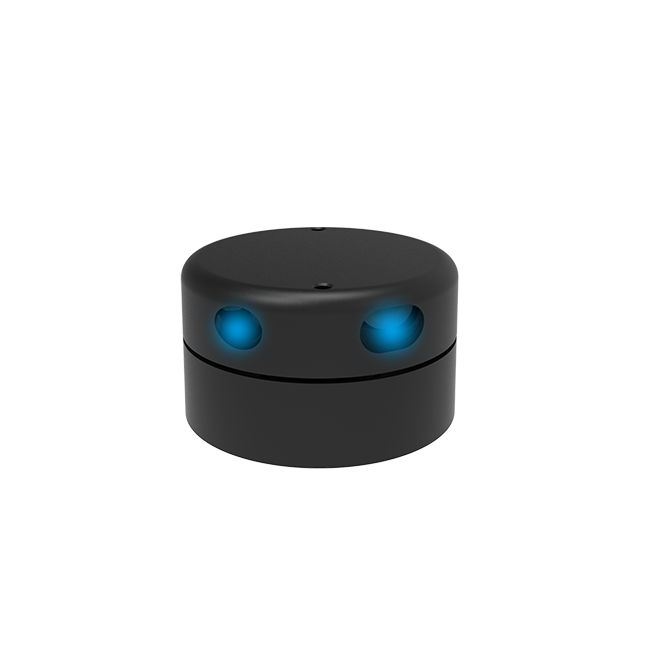

YDLIDAR G2 is a 360-degree two-dimensional rangefinder (hereinafter referred to as G2) developed by YDLIDAR team. Based on the principle of triangulation, it is equipped with related optics, electricity, and algorithm design to achieve high-frequency and high-precision distance measurement.
The mechanical structure rotates 360 degrees to continuously output the angle information as well as the point cloud data of the scanning environment while ranging.
Product Features
Applications
| Range Frequency | Scan Frequency | Range Distance | Scan Angle | Angle Resolution | Size |
| 5000Hz | 5-12Hz | 0.12-12m | 360° | 0.48°-0.52° | Φ72*41mm |
Ultra-thin Design
Its height is only 41mm. The integrated drive system and rotation system make the G2 series lidar more precise.
The motor is highly integrated which is more reliable and stable
Industrial level brushless motor
Using high quality bearings and customized brushless motor,
the lidar has stable performance, which greatly extend the life of the lidar.
compliant with FDA Class 1 safety standard
With safe and low power consumption laser tube, and PWM to control the laser, the lidar is compliant with Class 1 safety standard, which is at human eye safety level.
It is also equipped with self-developed safety alert system.
Adjustable range frequency
It is with 5-12Hz self adaptive range frequency and adjustable rotate frequency.
Applications
Mapping 丨 Obstacle Avoidance 丨 Screen Interaction 丨 3D Reconstruction 丨 Regional Security 丨 Aided Localization
