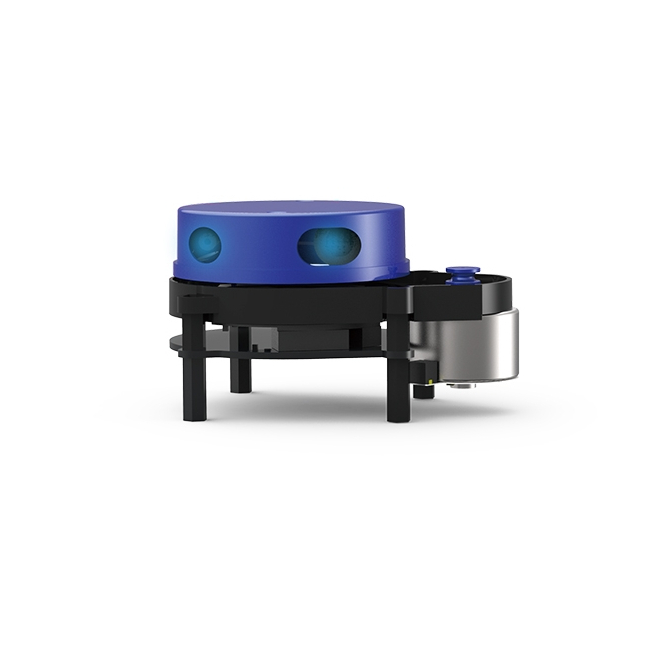

main product photo

Skip to the beginning of the images gallery

YDLIDAR X2

YDLIDAR G2

YDLIDAR X4

Be the first to review this product

£92.30 £76.92

YDLIDAR X4 is a 360-degree two-dimensional rangefinder (hereinafter referred to as X4) developed by YDLIDAR team.

SKU

YD-X4

YDLIDAR X4 is a 360-degree two-dimensional rangefinder (hereinafter referred to as X4) developed by YDLIDAR team. Based on the principle of triangulation, it is equipped with related optics, electricity, and algorithm design to achieve high-frequency and high-precision distance measurement. The mechanical structure rotates 360 degrees to continuously output the angle information as well as the point cloud data of the scanning environment while ranging.

Range Frequency	Scan Frequency	Range Distance	Scan Angle	Angle Resolution	Size
5000Hz	6-12Hz	0.12-10m	360°	0.48-0.52°	Φ65.651.8101.7mm

Product Features

360 degree omnidirectional scanning ranging distance measurement

Small distance error, stable performance and high accuracy

10m Ranging distance

Strong resistance to ambient light interference

Low power consumption, small size and long life

Laser power meets Class I laser safety standards

Adjustable motor speed frequency differ from 6Hz~12Hz (support customization)

Ranging frequency up to 5K Hz (support customization)

Applications

Robot navigation and obstacle avoidance

Robot ROS teaching and research

Regional security

Environmental scanning and 3D reconstruction

Commercial robot /Robot vacuum cleaner

360° omnidirectional scanning

X4 rotates 360 degree to scan and range the surrounding environment,

then to obtain the outline of surrounding to achieve mapping.

USB data transmission

X4 is equipped with a complete set of USB serial interface,SDK open source tools.

Data could transfer through USB to computer, no extra coding needed.

compliant with FDA Class 1 Safety Standard

X4 is compliant with FDA Class 1 laser safety standard,

which is safe to human eyes, thus guarantees the safety of children or pets.

10m Ranging Radius

X4 max ranging radius is up to 10m,

It could fulfill the requirements of various home robot, robot maker and algorithm verification.

Applications

Mapping

Obstacle Avoidance

Navigating

SLAM Research

Makers Education

Assisted driving
