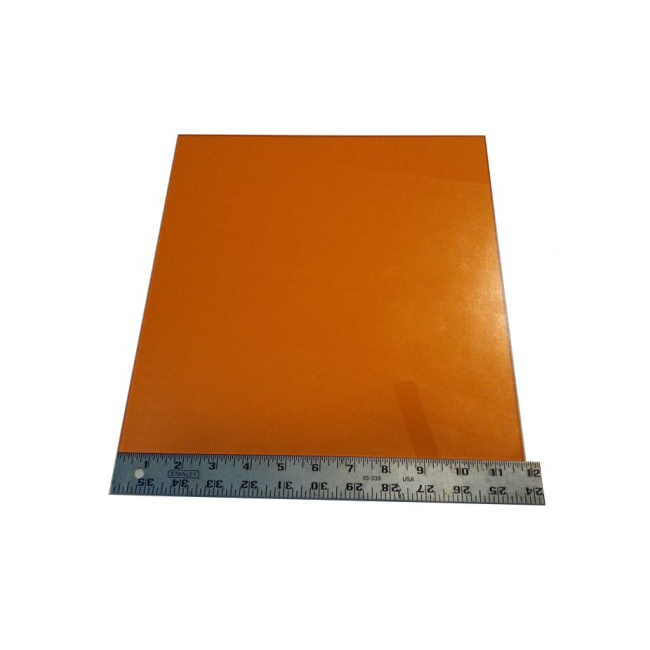

250nm to 520nm Laser Shielding - 12" x 12" (~30.5 x ~30.5 cm) - Acrylic sheet

Be the first to review this product

£27.30 £22.75

Protect your EYES!

This is a must for your new laser build! Protect the area around your machine and everyone’s eyes from stray laser radiation reflections.

We have contracted with a large plastic manufacturer to produce this high Optical Density Acrylic at OD 3+. This is the BEST you will find for the price! Most other plastic is OD2 at best.

Features:

-OD3+ laser filtering up to 520nm
-11 7/8″ by 11 7/8″

SKU

JT-ACRYLIC

Details

250nm to 520nm Laser Shielding - 12" x 12" (~30.5 x ~30.5 cm)

This is a must for your new laser build! Protect the area around your machine and everyone’s eyes from stray laser radiation reflections. This material is optical grade semi-transparent acrylic material that has been tested with our 405nm and 445nm lasers to show an OD of 3+. Sheets are sold in 11 7/8″ x 11 7/8″ sizes. Easily cut with saw or router to desired size for your machine. You can even cut it with your new 2.8W laser kit and engrave your logo or warning signs on it as well. Each piece comes with “Warning – Never Look Directly into a Laser Beam – Laser in Use”, “OD 3+ @445nm”, sticker for safety.

Be safe and not only wear safety goggles, but enclose your working area of your laser upgrade machine!

Tested Specifications:

Size:	11 7/8″ x 11 7/8″
Thickness:	1/8″ (0.125″) (3.175mm)
Weight:	12 oz
Wavelength Range:	250nm to 520nm
Visible Light Transmittance:	>55%
Optical Density:	3 (OD 3+)
Attenuation:	10-3 < N% < 10-4

Do not operate lasers without correct protective equipment and training. Laser Safety Shielding is not intended to replace laser protective eyewear (laser glasses or laser goggles) or other laser safety products that maybe required.

About the JTechPhotonics Laser engraving & cutting Kit

With this Laser upgrade you can transform your 3D printer or CNC into a Laser Engraving & cutting machine! With the powerful 3.8W laser you will be able to:

Engrave and cut Acrylic
Image Engraving
Engrave on Wood
Engrave anodized aluminium
Engrave on Leather
Engrave plastic, fiberglass, carbon fibre, etc
Cut Balsa and Basswood
Cut Foam
Cut thin plastics
Make custom prototype PCBs
and more!!

Check loads of examples here

This kit is compatible with almost any 3D printer and CNC available in the market as the Makerbot Replicator 2 & 2X, Ultimaker 1 & 2, Shapeoko 2, X-Carve, etc. Check this page to see how to install the kit in different printers.

The kits gives you a bunch of features that makes it awesome – precision laser trimmed regulators for constant current to the laser, 0.01 tuning resolution, digital isolation, soft start, esd protection, current limiting, and the list goes on. It was also manufactured with safety in mind! The US Federal Government has a list of things that are required for operating these high power class 4 lasers. They might seem trivial, but they could save your eyesight! Here is a run down of the new safety features to protect yourself and others:

Key Switch – This key is needed to enable the laser. When the key switch is turned on, the laser is enabled and the key CANNOT come out. You can only remove the key when it is disabled. This feature is good if you have curious children have your laser in a shared area and want to limit use. Just take the key out and hide it!

Remote Interlocks – This feature allows for addition of switches to your enclosure so when it is open, the laser will automatically turn off. Also provides for the addition of an E Stop button for the laser, which is always good for if you need to stop the laser super quick! Add as many switches as you want to make a super safe area for your laser machine so nobody can accidentally look into the laser.

Power Fault Protection - This one may seem like it is not needed, but hear us out. Consider your power goes out in your area where the laser is located. You were running your program and then everything is dark… Power doesn’t come back on for awhile… long enough for you to forget that the laser was left ON! You come back and are checking your laser and boom, the power is back on, right when you are looking straight at it. Well, don’t worry because the laser will be disabled whenever the power to the driver is lost. Press the reset button and you are back in action!

Emission Indicator - The small little LED on the front to let you know your really super bright laser is on… They require this in case you are using an infrared invisible laser.
