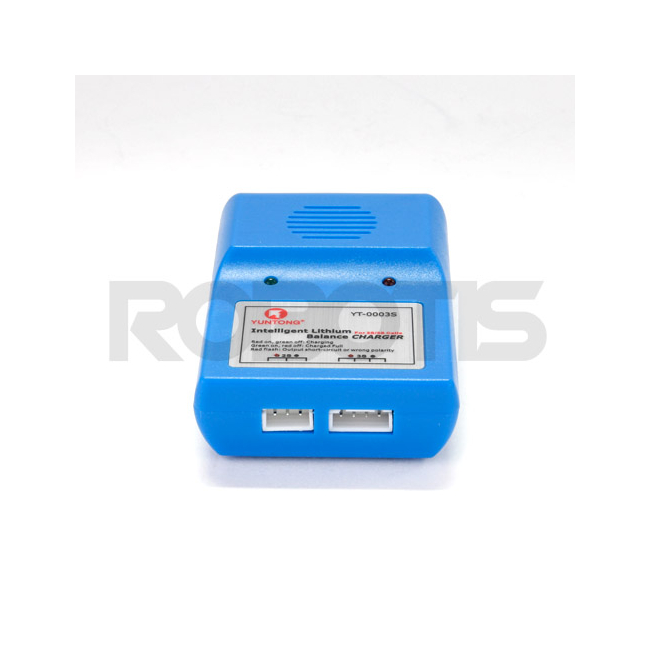

Description: This charger is intended for the Li-Po battery in the Bioloid Premium Kit, it uses the SMPS for power when charging, thus it must be accompanied with the SMPS 12V 5A. Support 2S and 3S Cell charge. (Exception, does not charge simultaneously)
Description: This charger is intended for the Li-Po battery in the Bioloid Premium Kit, it uses the SMPS for power when charging, thus it must be accompanied with the SMPS 12V 5A. Support 2S and 3S Cell charge. (Exception, does not charge simultaneously)
Specification:
Input Voltage : 10-18V
Output Voltage :
2S Cell : 8.4V
3S Cell : 12.6V
Output Current : 1.1A
STATUS :
RED LED ON : Charging
GREEN LED ON : Charge Complete
RED LED Blinking : Bad Battery Connection
WARNING!
Do not apply heat, water or any other liquid on the battery.
Do not take the battery apart.
Do not use damaged batteries. (inflated, deformed, damaged, etc)
Do not charge 2S and 3S Cell together at once.
When charging, make sure the battery is connected into the correct polarity.
Do not charge when the battery is hot. Please charge after it has cooled off.
When the battery is not being used, please take apart.
Do not charge the battery when it is being used by the controller.
