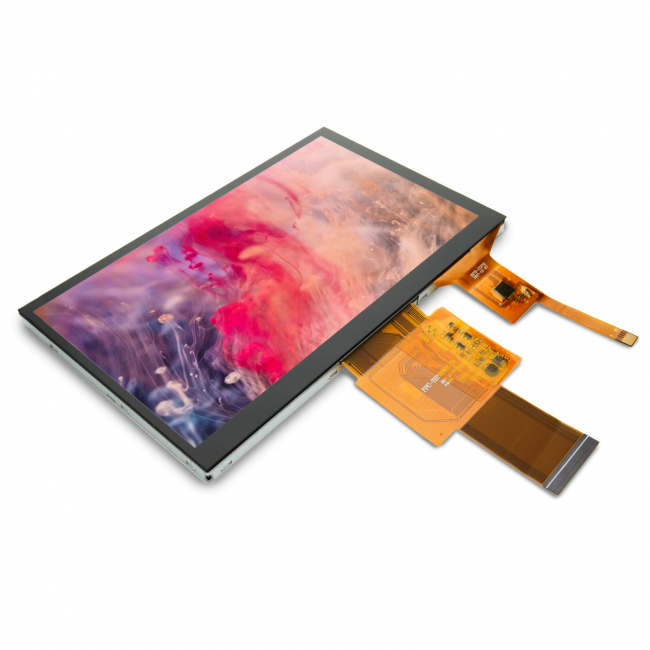

7" TFT Color Display w/ Capacitive Touch Screen

TFT Color Display with Touch Screen (7") is a color active matrix thin film transistor(TFT) liquid crystal display (LCD).

The TFT display module supports up to 24-bit pixel format (RGB: 888), allowing a true-color palette of 16,7 million colors, and resolution of 800 x 480 pixels. It features an excellent contrast ratio and uniform brightness. This module is composed of a TFT‐LCD panel, driver IC, FPC, a back light unit.

Features:

• Type: TFT
• Display Size: 7"
• Graphic Controller: HX8664 & HX8262
• Touch Screen: Capacitive
• Interface: I²C, Parallel 24-bit
• Input Voltage: 3.3V

Documents:

• Datasheet
