AgileX - SCOUT 2.0
As low as £11,461.70 £9,551.42
Designed for robotics research and development, the Scout 2.0 is an unmanned ground vehicle (UGV). This autonomous mobile robot is CE certified and offers robust mechanical design along with capable mobility performance.
PRICE MATCH GUARANTEE
We guarantee the best price in the market. If you find a better offer, let us know and we will beat it!
More information: Terms & Conditions
SKU
AGL-SCOUT2
4WD All-Terrain
Mobile Robot
50 KG
Playload
150 MIN
Runtime
1.5 M/S
Speed
Features
Circulating Cooling System
The circulating cooling system combines internal and external circulation for all-weather operation and adaptability to high-intensity and high-temperature environments.
Suspention
SCOUT2.0 employs 200W brushless servo motors to drive each wheel independently. Its double-wishbone suspension with shock absorbers ensures stability on rough terrain, enabling it to tackle obstacles up to 10cm tall effortlessly.
Expansion and Secondary Development
SCOUT 2.0 offers aluminum T-slot rails for secure mounting of external sensors or kits. It supports CAN bus protocol for connections and provides open-source SDK and software resources for expanded capabilities.
Specifications

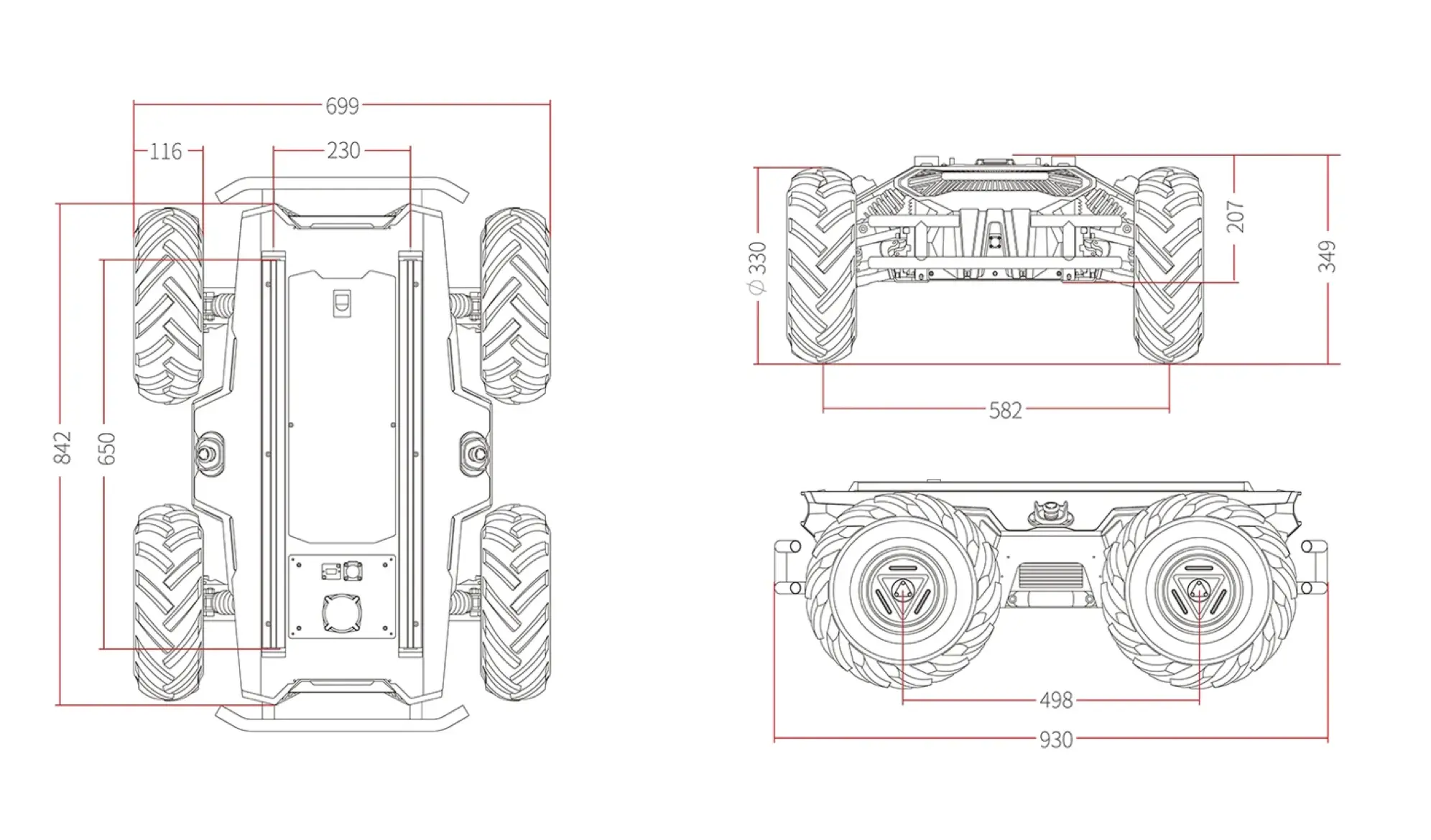

| Dimensions | 930*699*349mm |
| Platform Weight | 67Kg |
| Max. Payload | 50Kg |
| Climbing Ability | <30º |
| IP Rating | IP22 (IP44/IP64 Optional) |
| Communication | Standard CN, RS-232 Serial Port |
Speed and Performance
| Max. Speed | 1.5M/S |
| Max Travel | 15Km |
| Obstacle Clearance | 135mm |
Documentation
| Manufacturer | AgileX |
|---|---|
| RWP_Maximum Translational Velocity | 6km/h |
| RWP_Minimum Turning Radius | 0m In-silu Rotation |
| RWP_Max Travel | 15km |
| RWP_Rated Travelling Load | 50Kg - Fiction Coefficient 0.5 |
| RWP_Maximum Payload | 50 Kg |
| RWP_Climbing Ability | <30° With Loading |
| RWP_Obstacle Surmounting Capacity | 15cm Single-stage Right-angle Stair |
| RWP_Breaking Method | Servo Brake |
| RWP_Minimum Braking Distance | 0.2m | 6km/h > 0km/h |
| RWP_Operating Time | 3h (24V30Ah Battery) | 5h (24V60Ah Battery) |
| RWP_Charging Time | 3H |
| RWP_Working temperature | 0~40°C |
| Dimensions | 930*699*349mm |
| Product Weight | 67Kg |
| RWP_Chassis Material | Metal & Plastic |
| RWP_Suspension form | Front Double Rocker Independent Suspension | Rear Double Rocker Independent Suspension |
| RWP_Drive_Type_Steering | Four-wheel Independent Drive | Four-wheel Differencial Steering |
| RWP_Protection Level | IP22 | Customizable IP44 IP64 |
| RWP_Motors | 4 X 400W Brushless Servo Motor |
| RWP_Encoders | 2500 Lines Magnetic Incremental Encoder |
| RWP_Battery | 24V30Ah (Standard) | 24V60Ah (Optional) |
| RWP_Wheels | Standard Wheels |
| RWP_Connectivity | Standard CAN | 232 Serial Port |
| RWP_Open Source ROS (compatibility) | ROS1 / ROS2 |
