AWS IoT ExpressLink SARA-R5 Starter Kit

£246.80 £205.67

The AWS IoT ExpressLink SARA-R5 Starter Kit provides all you need to connect a device to AWS IoT Core over a cellular LTE-M network. The SARA-R5 module on the board supports the AWS IoT ExpressLink AT command set, which aims to make the app developer’s life easy.

SKU

S-KIT-18450

Details

Note - Please read before purchasing! The SARA-R5 module in the AWS IoT ExpressLink SARA-R5 Starter Kit only accepts AWS IoT ExpressLink AT commands. The regular u-blox SARA-R5 AT commands are not supported.

Built around AWS IoT ExpressLink, the Starter Kit offers AWS IoT Core access with a pre-activated SIM card for global use already inserted in the slot. The kit includes a SARA-R5 module mounted on a SparkFun MicroMod Asset Tracker Carrier Board into which a SparkFun MicroMod processor board can be inserted, allowing the module to be used with many different microprocessors. An ESP32 Processor Board is included in the kit allowing to run examples or demo applications.

The Asset Tracker Carrier Board has an integrated ICM-20948 Inertial Measurement Unit (IMU) for Nine Degree-Of-Freedom orientation and movement detection. Want to send a message if your asset is moved? The Asset Tracker can do that! The board also has a built-in digital microphone and so can send an alert as soon as a noise is detected too.

The SparkFun Asset Tracker Carrier Board has a built-in micro-SD card socket for data logging as well as a SIM card port with an already inserted pre-activated SIM card with 250MB of global data as well as an LTE antenna. Power options include both USB-C and LiPo battery (with built-in charging and battery fuel gauge), but you can provide power via a breakout pin too.

You can find AWS IoT ExpressLink examples on GitHub to run on the MicroMod processor.

The Asset Tracker will work with any of our MicroMod Processor Boards, but because it offers so many features and can be configured in different ways, some Processor Boards may be a better choice for your application than others. Please see our Hookup Guide for further details. To run through the Getting Started guide the kit also includes a MicroMod Update Tool.

Note: Our partner, u-blox, will continue to enhance the firmware for this product. To support this effort, SparkFun will provide u-blox the contact information for customers who purchase this kit to contact you for firmware feedback.

The u-blox SARA-R510AWS module with the included SIM card provides LTE-M data communication for multi-regional use. Please check that your service provider offers LTE-M coverage for your area before purchasing.

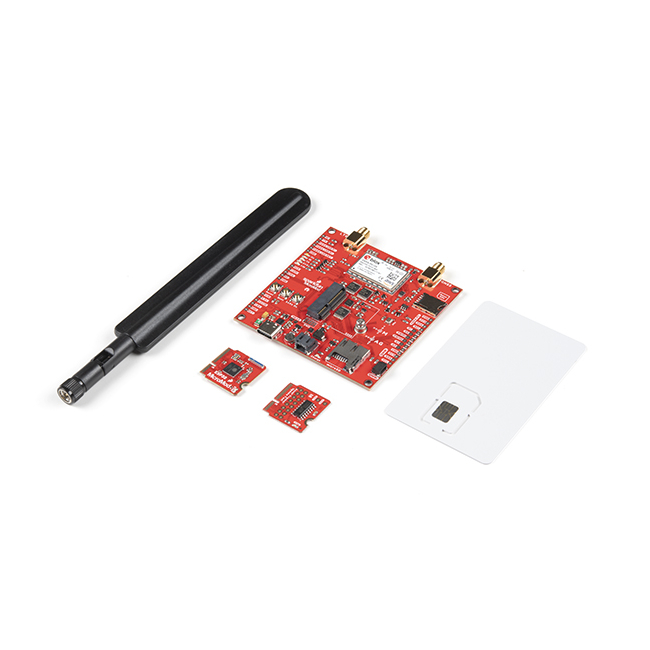

Includes:

1x MicroMod Asset Tracker Carrier board
1x MicroMod Update Tool
1x ESP32 processor board
1x u-blox Thingstream eUICC SIM Card
1x LTE antenna

Features:

u-blox SARA-R510-AWS module for secure multi-regional AWS IoT Core access
- Please check that your service provider offers LTE-M coverage for your area before purchasing
- 1x MicroMod Update Tool included to communicate directly with the u-blox SARA-R510AWS module.
Nano SIM socket
ICM-20948 Inertial Measurement Unit for 9-Degree Of Freedom orientation and movement detection
- “Wake On Motion” is supported
- The IMU is located in the center of the board for easy frame-of-reference
Digital microphone (SPH0641) for noise detection
micro-SD socket for data logging
Can be powered by one of our rechargeable LiPo batteries
- Includes both a LiPo battery charger (MCP73831) and a battery fuel gauge (MAX17048)
Separate, robust SMA connections for LTE and GNSS antennas
- Switchable 3.3V power for an active GNSS antenna
USB-C connectivity
Qwiic (I²C) connector
LED indicators for:
- Power (VIN and 3.3V)
- SARA-R5 on
- Network indicator
- GNSS timing pulse (1PPS)
3.3V breakout pins for:
- SARA on
- Network indicator
- GNSS timing pulse (1PPS)
- I²C bus
- SPI bus
- D0, D1, A0, A1 PWM0, PWM1
- SARA I²C
RTC backup battery
