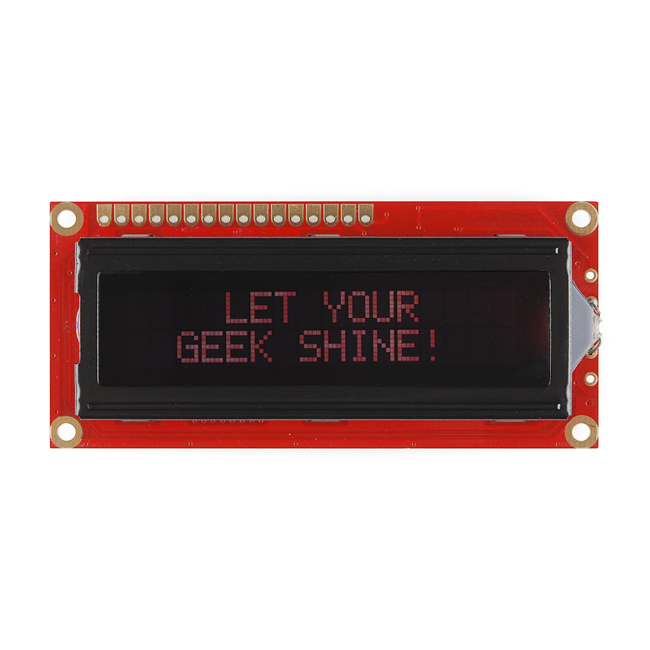

Basic 16x2 Character LCD - Red on Black 3.3V

£10.40 £8.67
SKU
S-LCD-09051
Brand
SparkFun

This is a 16 character by 2 line display that runs at 3.3V. Utilizes the common ST7066/HD44780 parallel interface (datasheet). Interface code is widely available for many different controllers and systems. You will need ~11 general I/O pins to interface to this LCD screen. Includes red LED backlight.

Features:

  • High quality STN 16x2 character LCD
  • 3.3V power supply
  • Red LED Backlight
  • 5x8 dot characters
  • ST7066 controller
  • 1/16 duty cycle
  • 0.34 x 1.4 x 3.2" (8.6 x 36 x 80mm)
