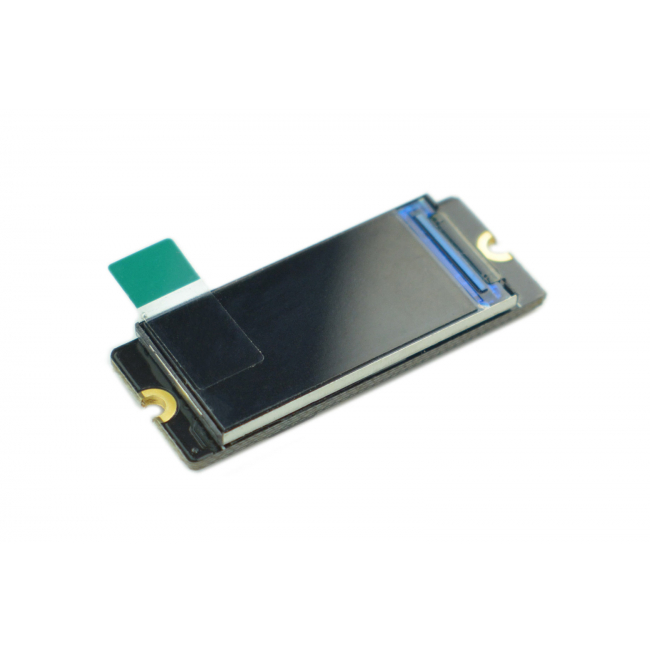

DFRobot - 0.96" 160x80 Color SPI TFT Display

Small and exquisite, this 0.96” TFT screen employs an edge-to-edge design and offers glorious 160×80HD 16-bit color display, which can be suitable for wearable projects, mobile devices and smart home products.

It supports DFRobot GDI display interface and can be conveniently connected to your GDI main-controller with FPC, plug and play, and easy to wire！

Compatible with 3.3V to 5V, the display consumes current less than 15mA in full-screen. It works well with controllers like Arduino UNO, Leonardo, ESP32, ESP8266, FireBeetle M0, etc

Board-Overview

• TFT material, better display effect
• GDI interface, no soldering required
• Narrower PCB, easy to be integrated into small projects

• Wearable projects
• Mobile devices
• Smart home products.

• Operating Voltage: 3.3V-5V
• IPS Viewing Angles: 60/ 60/ 60/ 60
• Color Depth: 16-bit (RGB565)
• Pixels: 160x80
• Interface: SPI
• Driver Chip: ST7735
• Luminance: 250 (Typ) cd/m2
• Power Consumption of Full Screen: 15mA
• Operating Temperature: -30℃~+70℃
• Display Area: 10.8 x 21.7 mm/ 0.43 x 0.85"
• Dimension: 13.5 x 34 mm/ 0.53 x 1.34"

• 0.96"160x80 Color SPI TFT Display x1
• 2.54 Black Single Row Connector-10P x1
• FPC0.5-18PIN Reverse Direction 10cm x1
