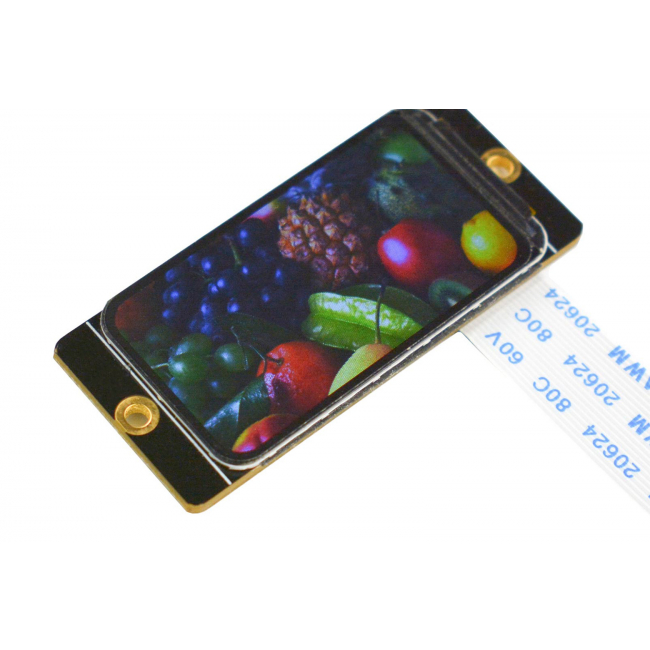

DFRobot - 1.47" 172×320 IPS LCD Display Module

This exquisite little display is a good choice for projects requiring colorful and clear displaying effects!

Based on the ST7789V3 driver chip, this 1.47" display has 172×320 pixels with IPS any-angle viewing and SPI interface for communication. It comes with a 1mm narrow frame and rounded corners. The display can be used to display text messages, images, animations or videos. Also, with the supported Arduino GLD and LVGL libraries, more amazing dynamic effects can be achieved.

It is widely suitable for DIY projects like mini game consoles, weather stations, pendants, clocks, video players, meters, etc.

• Curved edges
• 172×320 pixels
• Narrow frame with a width of 1mm
• HD IPS, adjustable viewing direction

• Mini weather station
• Pendants
• Miniature meters
• Video players
• DIY gifts
• Mini game consoles
• Mini clocks
• Mini humidity temperature meters

• Display Dimension: 1.47"
• Pixels: 172×320
• Interface: SPI
• Brightness: 600(TYP)Cd/m2
• Viewing Direction: full angle
• Operating Temperature: -20℃ to +70℃
• Operating Voltage: 3.3V
• Backlit: 3 White LED Parallel
• Display Area: 19.1mm×33.8mm/0.75×1.33"
• Module Dimension: 19.5mm×44.5mm/0.77×1.75"

• 1.47" 172×320 IPS LCD Display Module ×1
• Black Single-row Pin Header-8PIN ×1
• FPC Cable ×1
