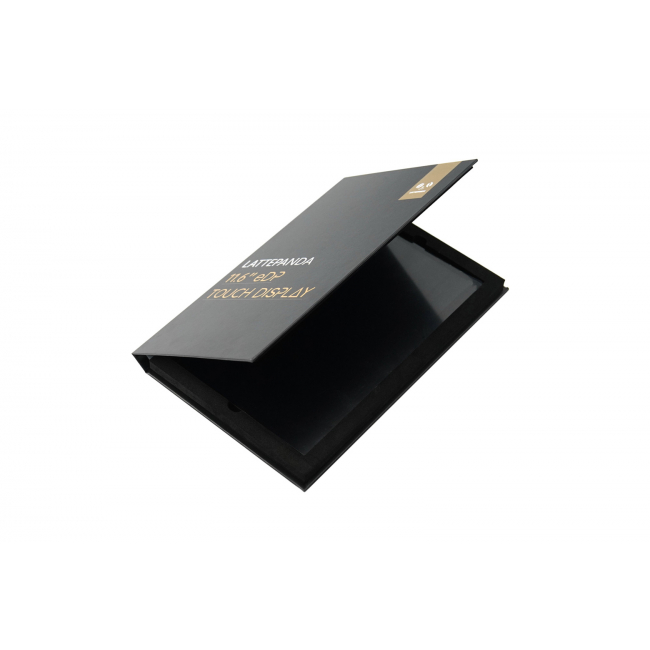

DFRobot - 11.6 Inch 1920x1080 FHD eDP Touch Display for LattePanda Iota / Mu / Mu Ultra / Sigma / 3 Delta / 2 Alpha

This 11.6-inch FHD eDP touch display features a high-definition resolution of 1920x1080 and an ultra-thin, ultra-narrow bezel design. It is perfect for HMI and Portable Projects. The display has a full-view design and multi-touch functionality that enhance user interaction. It is compatible with LattePanda IOTA / LattePanda Mu / LattePanda Mu Ultra / LattePanda Sigma / LattePanda 3 Delta / LattePanda 2 Alpha / LattePanda 2 Delta single-board computers.

High Definition Display

The touch display offers a high-definition resolution of 1920x1080, providing an ultimate visual experience. Whether watching videos or processing images, users can experience unparalleled clarity and color saturation. eDP screens, with their advantages of high-speed transmission, high-resolution support, and scalability, are widely used in various displays, including portable devices, human-machine interaction interfaces, and industrial control panels. With the continuous development of the industrial sector, eDP screens will continue to play a significant role, bringing higher efficiency and visual effects to the industry.

Ultra-thin and ultra-narrow bezel design

This screen boasts an ultra-thin and ultra-narrow bezel design, offering an exceptional visual experience. Its ultra-thin thickness contributes to a lighter screen, while the extremely narrow bezel design provides a broader field of view and a deeply immersive viewing experience.

Wide Viewing Angle and Multi-touch

This screen features a full-view design, ensuring clear images and true colors from any angle. In addition, its multi-touch functionality allows users to perform various operations more intuitively, enhancing the user experience.

Best Compatibility

Unlike other normal HDMI screens, this display uses an eDP interface and has the best compatibility with LattePanda Iota / LattePanda Mu / LattePanda Mu Ultra / LattePanda Sigma / LattePanda 3 Delta / LattePanda 2 Alpha / LattePanda 2 Delta.

Figure: How to Install the 11.6-inch FHD eDP touch display and LattePanda

Installation Video

• High-quality display with vivid and accurate color reproduction
• Wide viewing angle for enhanced visibility from different perspectives
• Multi-touch functionality for intuitive interaction
• Compact design for easy integration into various projects
• Versatile applications in human-machine interface (HMI) and portable projects

• Size: 11.6-inch
• Interface: eDP (DP) + I2C (TP)
• Resolution: 1920x1080
• Panel Type: IPS
• Color Gamut: 68% Typ.@CIE1931
• View Direction: Full View
• Pixel Pitch: 0.1335(H) × 0.1335 (V) mm
• Pixel arrangement: RGB Vertical stripe
• Display Area: 256.320 (H) × 144.180(V) mm
• Backlight Type: LED
• Brightness: 350cd/m2 (Max)
• OS Support: Windows/Linux
• Operating Temperature: -10 ～ +60 ℃
• Storage temperature: -20 ～ +70 ℃
• Weight: 431g (bare screen)
• Dimension (W x H x D): 267x159x8.8mm

• 11.6-inch eDP touch display x1

Ribbon Cable pack:

• 30cm 40P to 30P 0.5mm Coaxial EDP Screen Cable (For LattePanda Mu/Sigma) x1
• 34cm Opposite-Side Touch cable (For LattePanda Sigma) x1
• 34cm Same-Side Touch cable (For LattePanda Mu) x1
• 22cm eDP FPC cable (For LattePanda Iota/3 Delta/2 Alpha) x1
• 21cm Opposite-Side Touch cable (For LattePanda Iota/3 Delta/2 Alpha) x1
