DFRobot - 20V 180W Power Adapter for LattePanda Mu MXM GPU Carrier Board Kits

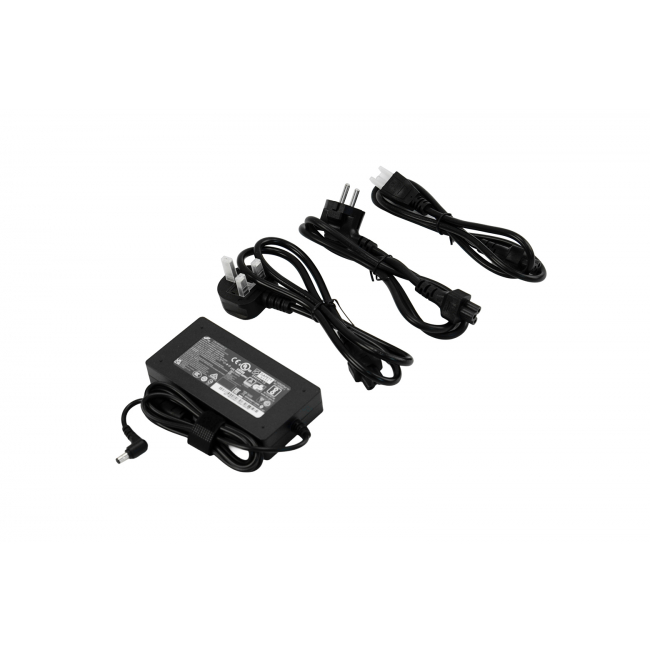

This 20V 180W AC/DC power adapter is designed as a spare or replacement power supply for the LattePanda Mu MXM GPU Carrier Board Kits (RTX 3060 version and A380 version).

It provides a stable 20V / 9A DC output through a 5.5×2.5mm DC plug, supporting reliable power delivery for the LattePanda Mu GPU carrier board system. The adapter includes US, EU, and UK IEC C5 “Mickey Mouse” AC power cords, making it suitable for use in multiple regions.

Please note that this adapter is not required when purchasing a new A380 MXM GPU Carrier Board Kit or RTX 3060 MXM GPU Carrier Board Kit package, as each kit already includes one power adapter. This product is intended for users who need an additional adapter, a replacement unit, or a spare power supply for deployment, testing, or maintenance.

Note:

• Always disconnect power before inserting or removing the LattePanda Mu compute module, MXM GPU module, or internal connectors.
• Select the appropriate AC power cord according to the local region.

• Input Voltage: AC 100~240V 50~60Hz
• Output Voltage: DC 20V
• Output Current: 9A
• Output Power: 180W Max
• Operating Temperature: 0~40℃
• Storage Temperature: -20~85℃
• Dimensions (Adapter): 136.1 x 67.6 x 25.2mm
• AC Cable Length: 1000mm
• DC Cable Length: 1800mm
• Certifications: CCC, CE, UL, UKCA, TUV, GS, BIS, KC, SAFETY Mark, RoHS, EAC, VI

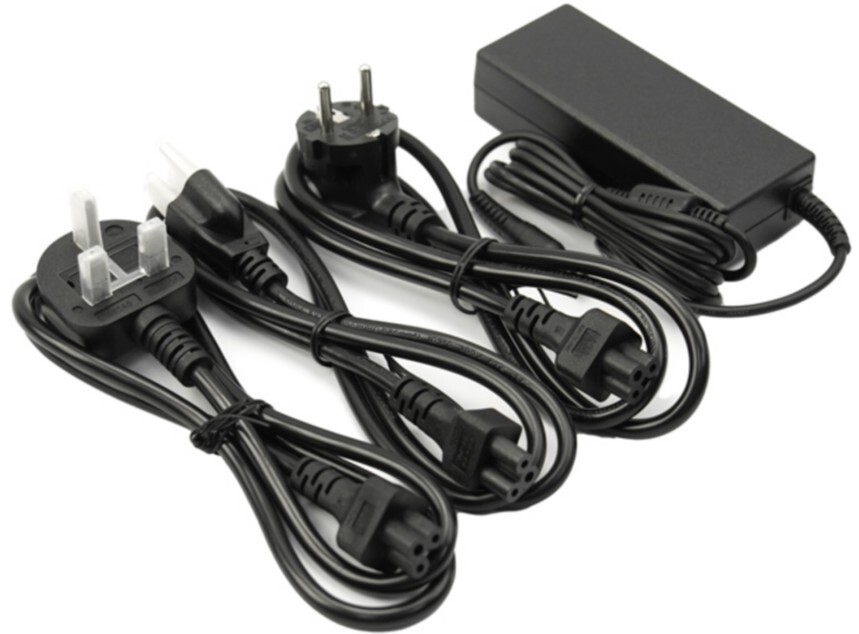

• 20V 180W AC/DC Power Adapter x1
• US IEC C5 AC Power Cord x1
• EU IEC C5 AC Power Cord x1
• UK IEC C5 AC Power Cord x1
• AC Adapter Safety Information x1
