DFRobot - 5” 800×480 IPS Touchscreen with Optical Bonding (Compatible with Raspberry Pi 5 / 4B / 3B+ / 3B)

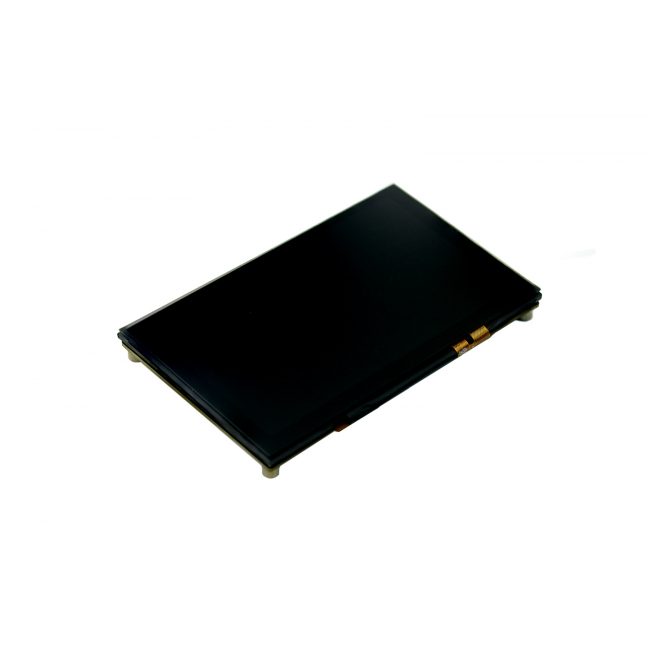

This is a 5-inch IPS capacitive touchscreen display with a resolution of 800×480. It supports the Raspberry Pi DSI interface, allowing for quick and easy connection to the Raspberry Pi 5 / 4B / 3B / 3B+ single-board computer.

In the use of the Raspberry Pi, the touchscreen plays a significant role, serving as a key interface for interaction, information display, and content presentation. The Raspberry Pi's versatility, expandability, and ease of development make it highly potential for various projects. If your project revolves around the Raspberry Pi and requires a medium-sized touchscreen display, this product would be an excellent choice.

Figure: Installation Diagram of the Display and Raspberry Pi 5

Figure: Installation Diagram of the Display and Raspberry Pi 4B

This product has been optimized and upgraded based on the old version 5" 800x480 TFT Raspberry Pi DSI Touchscreen (Compatible with Raspberry Pi 3B/3B+/4B), with excellent quality parameters. It adopts IPS hard screen technology and full lamination process, with a high brightness of 550cd/㎡. These features enable it to present a wide viewing angle, outstanding response speed, clear and bright images, high color reproduction, as well as the advantages of being less prone to dust and durable. In addition, the surface of the display has been treated with anti-fingerprint and anti-glare, allowing it to perform well even under outdoor sunlight.

• 800×480 resolution
• High brightness of 550cd/㎡
• IPS hard screen
• Full lamination process
• Anti-fingerprint and anti-glare surface treatment
• 5-point capacitive touch
• Raspberry Pi DSI plug-and-play
• Compatible with Raspberry Pi 5/4B/3B+/3B

• Raspberry Pi IoT projects
• Raspberry Pi personal computer
• Raspberry Pi server
• Raspberry Pi gateway

Basic Parameters

• Operating voltage: 3.3V (provided by the Raspberry Pi display interface)
• Static operating current: approximately 700mA
• Display interface: Raspberry Pi DSI
• Mounting hole diameter: M2.5
• Raspberry Pi mounting hole dimensions: 58mm x 49mm
• Display screen mounting hole dimensions: 113mm x 68mm
• Weight: 175.6g

Screen Parameters

• Display area size: 5.0 inches
• Resolution: 800×480
• Pixel pitch (mm): 0.045(H)×0.135(V)
• Color display: 16.7M
• Display mode: usually black, transmissive
• Color arrangement: RGB stripe
• Data interface: RGB 24-bit, digital (TTL)
• Viewing angle: full viewing angle
• Contrast ratio: 1200
• Response time: 30ms
• Bonding method: full bonding
• Brightness: 550cd/㎡
• Touchpoints: 5-point capacitive
• Refresh rate: 60Hz
• Surface treatment: anti-fingerprint, anti-glare
• Viewable area (mm): 108.0(W)×64.8(H)
• Dimensions (mm): 120.7(W)×75.8(H)×4.9(T)

• 5" 800×480 Raspberry Pi DSI fully laminated touch screen x1
• FFC connection cable 50mm x1
• Raspberry Pi 5 DSI ribbon cable (300mm) x1
• M2.5*6 installation screws x8
