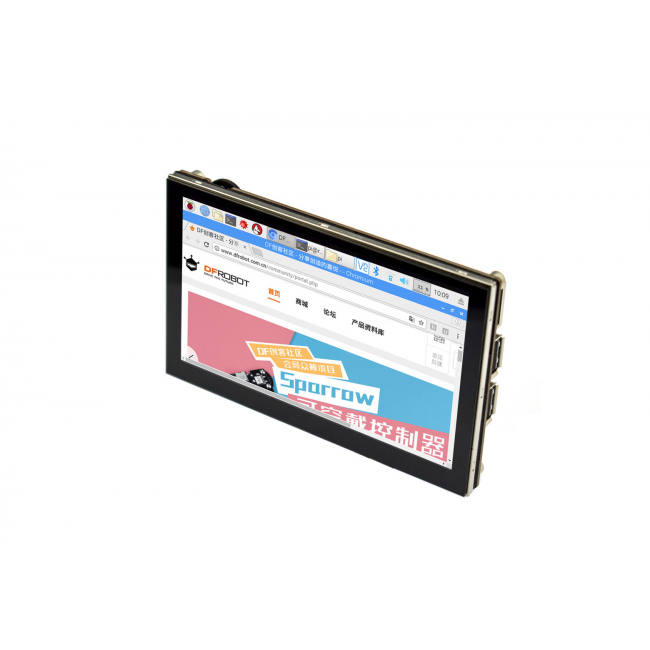

DFRobot - 5'' 800x480 IPS Raspberry Pi DSI Touchscreen(Compatible with Raspberry Pi 3B/3B+/4B)

This is a 5" Raspberry Pi LCD touchscreen with 800*480 resolution and 108×64.8mm display area. The product supports Raspberry Pi DSI display interface and comes with a capacitive touch panel on its screen and supports 5 touch points.

• Capacitive Touchscreen, Support 5 TouchPoints.
• Raspberry DSI Direct Driver

• Operating Voltage: 3.3V (Supplied by Raspberry Pi display interface)
• The Maximum Operating Current: 320mA
• Screen-off Current: 100mA
• Resolution: 800*480
• Video Interface: Raspberry Pi DSI
• Number of Touch Points: 5
• Viewing Angle: 80°/80°/80°/80°
• RGB888-16 Mega True Color
• Refresh Frequency: 60Hz
• Luminous Efficiency: 550 cd/㎡
• Operating Temperature: -20℃~70℃
• Dimension: 121mm×76mm / 4.76" × 2.99"
• Mounting Hole Size: M2.5
• Outside Mounting Hole Position: 113mm × 68mm/ 4.45" × 2.68"
• Inside Mounting Hole Position: 58mm x 49mm/ 2.28" x 1.93"

• 5'' TFT-Display with Touchscreen(V1.0) x1
• FFC cable 45mm pitch 1.0mm-15pin x1
• M2.5*8 Standoffs x8
• M2.5*6 DK4.9 Machine Screws x8
