DFRobot - 6V 2-Position 3-Way Air Valve for Arduino
£3.62
£3.02

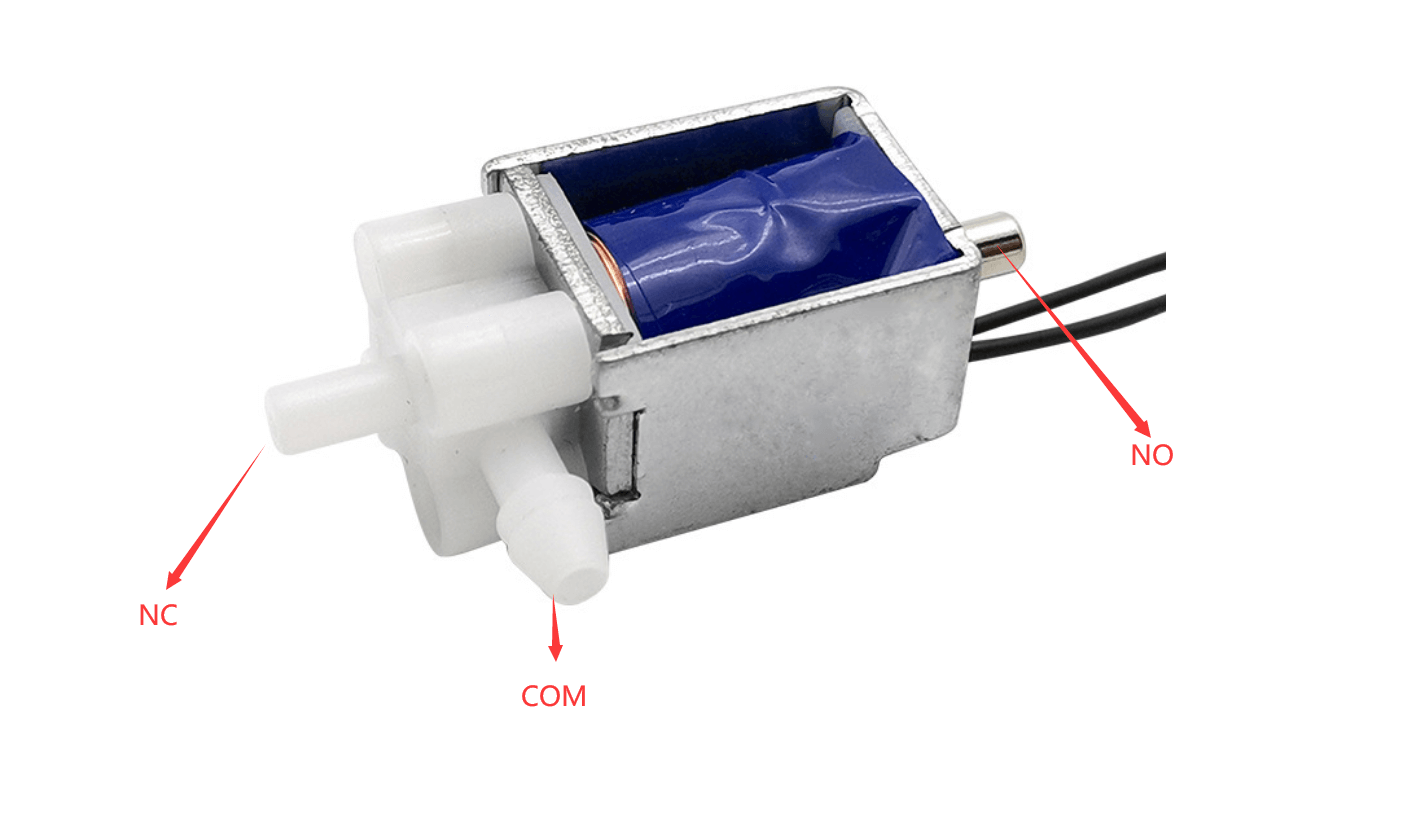

For guys who are interested in pneumatic system, hydraulic system, inflation equipment, or air compressing, this is a really practical valve for you. It can be used to change the direction of the air outlet, also can be used as a valve switch. Like a relay, it has a common interface (COM), a normally open interface (NO), and a normally closed interface(NC). You can determine which interface to be…
SKU
DF-DFR0866
Introduction
For guys who are interested in pneumatic system, hydraulic system, inflation equipment, or air compressing, this is a really practical valve for you. It can be used to change the direction of the air outlet, also can be used as a valve switch. Like a relay, it has a common interface (COM), a normally open interface (NO), and a normally closed interface(NC). You can determine which interface to be connected to the common interface by powering on and off the valve.

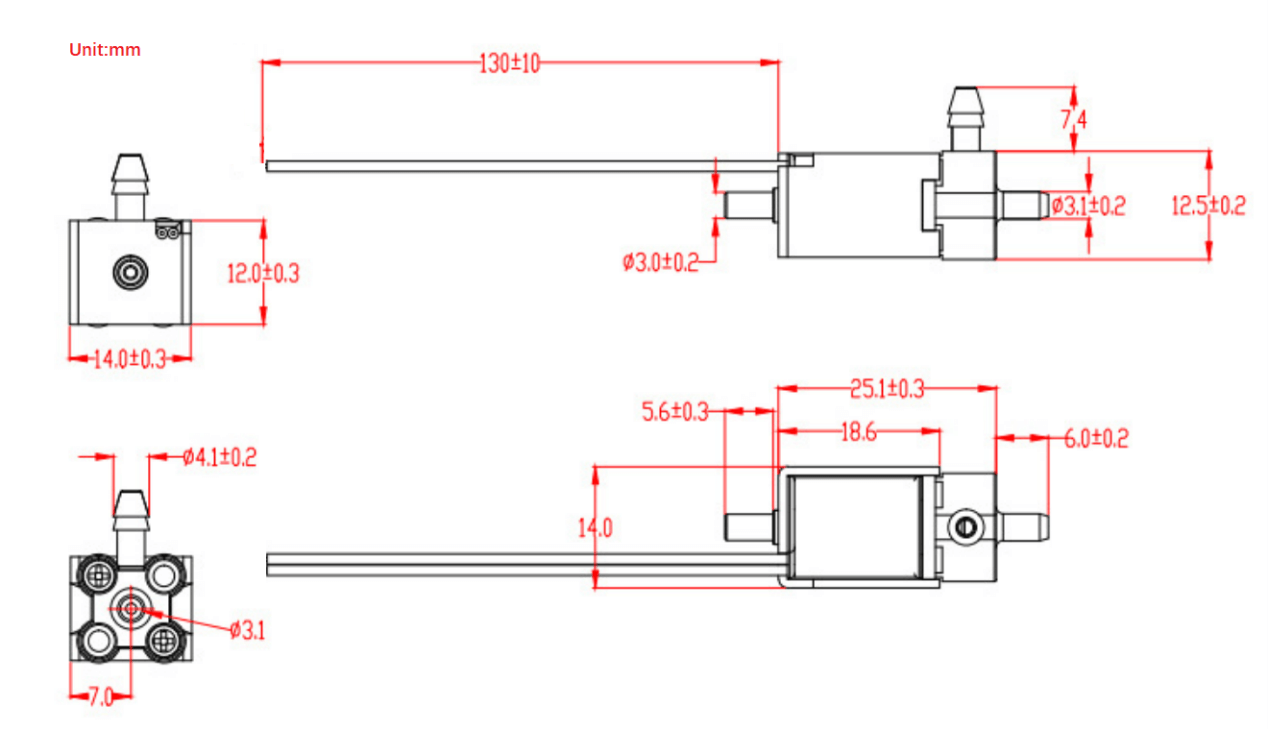

Dimension
Specification
- Operating Voltage: 6V
- Rated Current: 100±10% mA
- DC Impedance: 60±10%Ω
- Power: 0.6W
- Air Nozzle Diameter: Ø3.0mm/0.12”
- Maximum Pressure: 40KPa (300mmHg)
- Medium: Gas
- Weight: 15g
Shipping List
- 6V 2-Position 3-Way Air Valve x1
| Manufacturer | DFRobot |
|---|
