DFRobot - Beetle CM-32U4 - Compatible with Arduino Leonardo - ATmega32U4

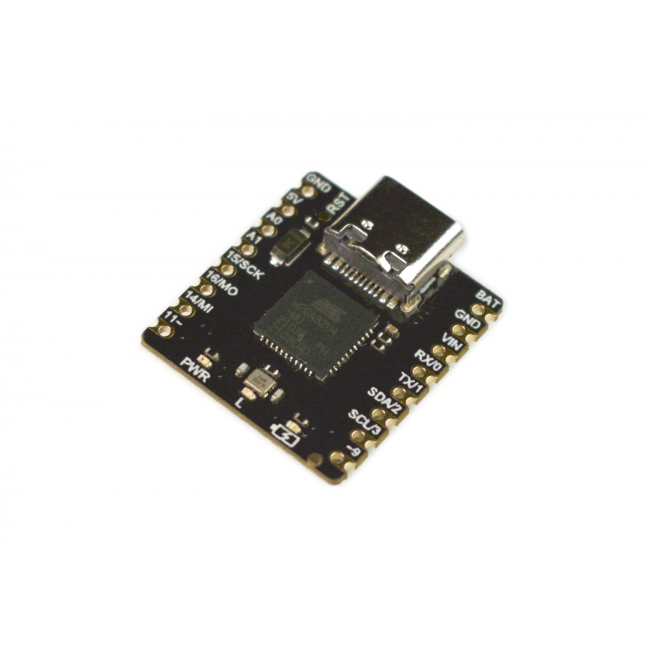

Beetle CM-32U4 is a micro Leonardo controller with an onboard charging chip.

As an upgraded version of the DFRobot Beetle Board, this board is greatly optimized in integration and usability, which makes it well applicable to Arduino projects that require compact size and long service life.

Just like the Beetle series, despite a mini body, it has powerful functionalities. On a size of only 22mm*20.5mm, Beetle CM-32U includes most commonly-used communication interfaces: 1×I2C, 1×SPI, 1×UART, 2×analog Interface, 2×digital interface, 2×GND reserved and 1×5V output, which are all designed as pin connector form, more intuitive and easy to use compared with the onboard pads of Beetle. Besides, Beetle CM-32U4 supports official Leonardo firmware, which means you can directly use it in Arduino IDE without extra download.

It integrates the charging management function for Lithium battery. You can easily connect the battery to the board via pins, which could reduce project building difficulty, meanwhile, much smaller and safer.

There are 3 power supply methods: USB power supply; Battery pack power supply on the BAT pin; 5V external power supply on the VIN pin, making this board more widely applicable to DIY projects, workshops, gift projects, E-Textiles wearable, and educational. And the features of rechargeable and diverse power supplies, to some extent, are equivalent to "uninterrupted power supply (UPS)".

Board Overview

• Rich functions
• Small size
• Greatly increase the service life

• DIY projects
• Workshops
• Gift projects
• E-Textiles wearable

• Operating Voltage: 5V DC
• Maximum Charging Current: 600mA
• Minimum Charging Current: 200mA
• Operating Temperature Range: -40～125℃
• Interface: I2C x 1,SPI x 1,UART x 1,Analog x 2,Digital x 2
• Dimension: 22 x 20.5mm/0.87 x 0.81”

• Beetle CM-32U4 x1
• 8pin-2.54mm Pin Header x2
