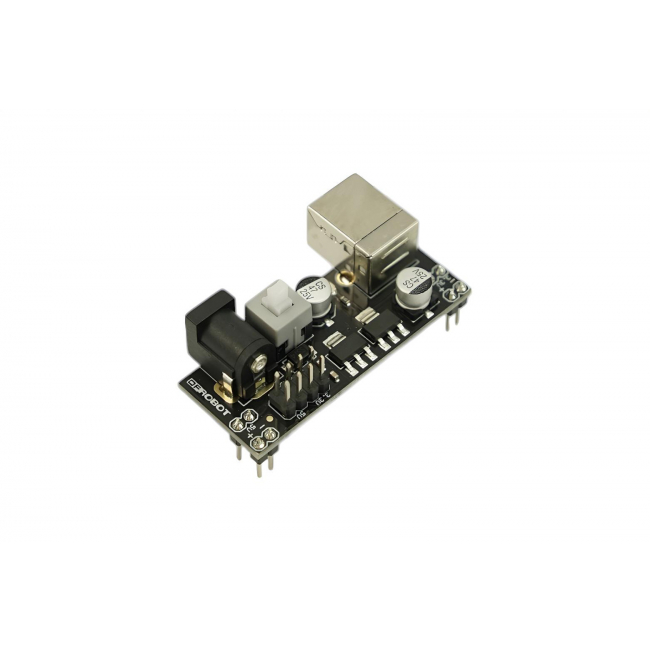

DFRobot - Breadboard Power Supply 5V/3.3V
£4.13
£3.44
This is a very simple board that takes a 6-12V input voltage and outputs a selectable 5V or 3.3V regulated voltage. All headers are 0.1" pitch for simple insertion into a breadboard. It can be either powered from 6-12 DC2.1 power jack or from USB power. The maximum current it can provide is 500mA.
SKU
DF-DFR0140
Introduction
This is a very simple board that takes a 6-12V input voltage and outputs a selectable 5V or 3.3V regulated voltage. All headers are 0.1" pitch for simple insertion into a breadboard. It can be either powered from 6-12 DC2.1 power jack or from USB power. The maximum current it can provide is 500mA.
Specification
- Input voltage: 6-12V (Power Jack) 5V (USB)
- Output voltage:3.3V/5V
- Output current:500mA
- On/Off switch
- Power status LED
- Pin Head 5/3.3V output
- Central positive DC2.1 power jack
Shipping List
- Breadboard Power Unit (Assembled) x1
Documents
- Protel Schematic
| Manufacturer | DFRobot |
|---|
