DFRobot - D-Robotics RDK X5 AI Developer Kit for ROS Robotics - 8GB, 10Tops

Be the first to review this product

£215.35 £179.46

High-Performance Computing: 8x A55 cores @1.5GHz with 8GB RAM
AI Acceleration: 10 TOPS BPU + 32 GFLOPS GPU
Advanced Connectivity: Wi-Fi 6 & Bluetooth 5.4 with optional external antennas
Versatile I/O: 4x USB 3.0, HDMI, MIPI CSI/DSI, CAN FD, and 28 GPIOs
Media Processing: 4K60 H.265/H.264 encoding/decoding

SKU

DF-DFR1239

Details

Introduction

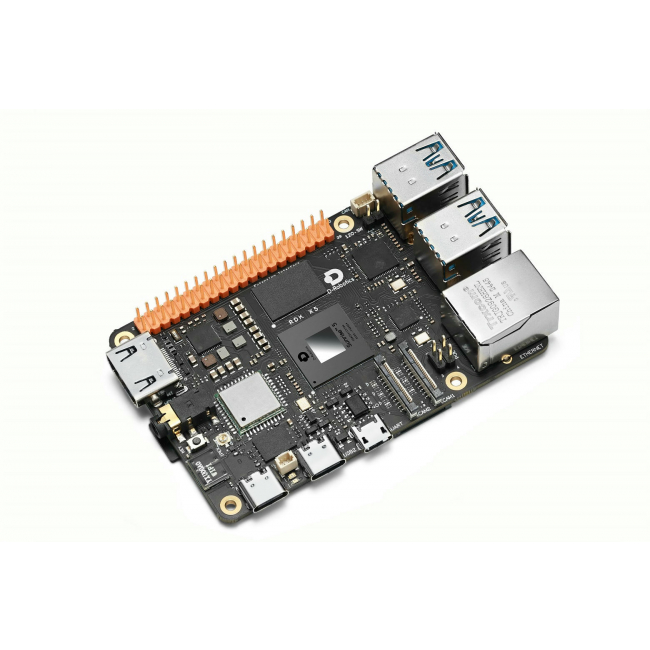

The D-Robotics RDK X5 Development Board is the ultimate AI developer kit for building intelligent machines, designed to accelerate ROS robotics projects. This high-performance AI robot board supercharges the development workflow by integrating a powerful 10 TOPS NPU, enabling complex AI models like Transformers to run directly on the edge. As the perfect core for any ROS robot kit, it provides the computational horsepower and seamless integration needed to take robots from concept to reality, faster.

Elite AI Performance on the Edge

Enabling robots to move beyond the cloud and achieve true autonomy, the RDK X5 delivers a comprehensive performance leap. It features a 10 TOPS NPU dedicated to accelerating intelligent algorithms. This power allows complex AI models to run in real-time, directly on the hardware, providing exceptional computational support for demanding robotics applications.

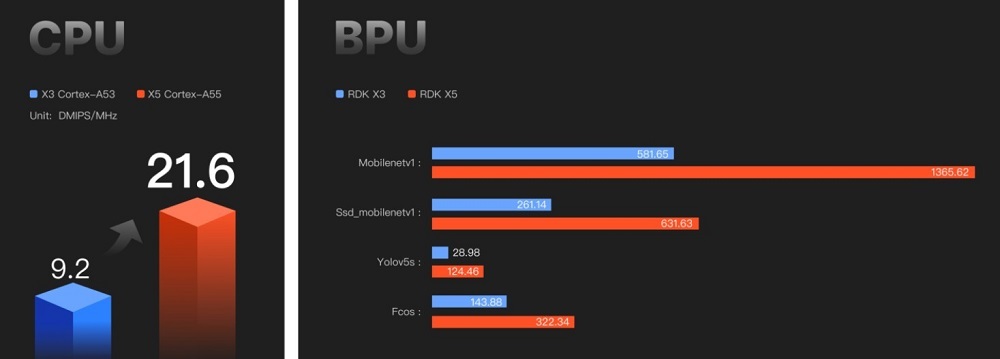

Super Powerful Computing Power Boost of RDK X5 AI Board

Seamless Integration & Versatile Connectivity

Engineered for reliability, the RDK X5 is designed to drop seamlessly into any ROS project. It features dual-band Wi-Fi 6 and Bluetooth 5.4 for stable, high-speed wireless communication. For robust industrial integration, the board includes a high-speed CAN FD interface and Power over Ethernet (PoE) support, simplifying wiring and deployment in any autonomous system.

Rich interfaces of RDK X5 Robotics Developer Kit

AAdvanced Machine Vision & Perception

The RDK X5 brings robotic perception to life with dual MIPI inputs for seamless compatibility with advanced stereo vision algorithms. Its Advantageous Algorithm Matrix uses deep learning to ensure precise motion estimation and keypoint matching, delivering robust performance even in challenging conditions like low light, backlighting, or weak textures.

Advantageous Algorithm Matrix of RDK X5 Robotics Developer Kit

A Streamlined & Open Development Environment

Development efficiency is boosted by the innovative "Flash Connect" paradigm, which uses a single Type-C cable for system programming, data transfer, and debugging. The RDK X5 provides a flexible foundation for custom applications with full Ubuntu support, multiple memory configurations (up to 8GB RAM), and a powerful open-source ecosystem for immediate development.

More Memory, the Same 10 TOPS BPU

The 8GB version provides additional system memory compared with the 4GB board; BPU compute capacity remains 10 TOPS. Memory requirements depend on the model, image buffers, ROS nodes and other running processes. Choose the memory configuration using measurements from the intended application.

Innovative
