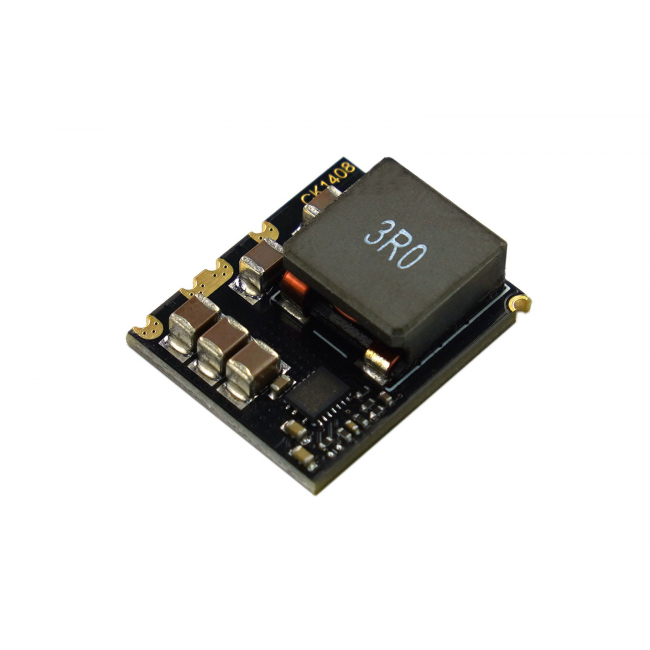

DFRobot - DC-DC Buck Converter 6~14V to 5V/8A

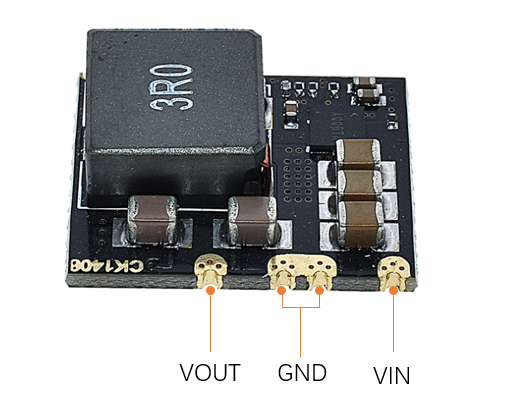

This 40W high power DC-DC Buck converter offers a 6~14V input voltage range and up to 5V/8A output. Featuring a small body, high conversion ratio, strong heat dissipation, and large current output, the module is compatible with all 5V main-boards, and can work as an SMD element to be directly soldered onto PCB. With steady output, this buck converter is able to work for a long time without voltage shift, which can be suitable for projects of high requirements like smart homes, small robot car power sources, etc.

• Small in size
• 40W high power output
• Over 93% conversion ratio
• Can be used as SMD component

• Input Voltage Range: 6V-14V
• Output Voltage: 5V
• Output Current: 0-8A
• Voltage Accuracy: ±1%
• Full-load Output Ripple: ＜30mV
• Conversion Ratio: >93% (12V input, full-load output)
• Static Current:
• Operating Temperature: 0°C~70°C

• DC-DC Buck Converter 6~14V to 5V/8A x1
