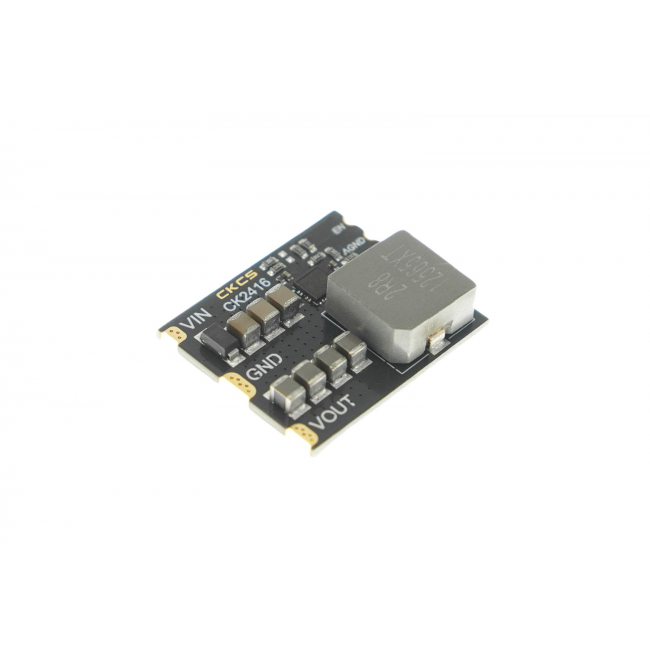

DFRobot - DC-DC Step Down Buck Converter (15~24V to 12V/12A)
£14.41
£12.01
This DC-DC step-down converter module is designed to efficiently reduce a high input voltage (15-24V) to a stable 12V output, supporting up to 12A of current. The module offers high conversion efficiency (over 95%), with minimal ripple noise (under 50mV), making it suitable for power-sensitive applications. It also includes built-in protection features such as over-temperature protection (up to…
SKU
DF-DFR1208
Introduction
This DC-DC step-down converter module is designed to efficiently reduce a high input voltage (15-24V) to a stable 12V output, supporting up to 12A of current. The module offers high conversion efficiency (over 95%), with minimal ripple noise (under 50mV), making it suitable for power-sensitive applications. It also includes built-in protection features such as over-temperature protection (up to 125°C) and short circuit protection, ensuring the safe operation of both the module and connected devices.
High Conversion Efficiency
Achieves greater than 95% efficiency with 24V input and 1-12A load, minimizing energy loss and ensuring reliable power conversion for demanding applications.
Over-Temperature and Short Circuit Protection
Features over-temperature protection up to 125°C and output short circuit protection, safeguarding the module and connected devices from damage.
Thermal Management for High-Current Loads
A built-in thermal pad allows for enhanced heat dissipation when soldered to a larger copper area, providing improved performance under heavy load conditions.
The module features three control pins:

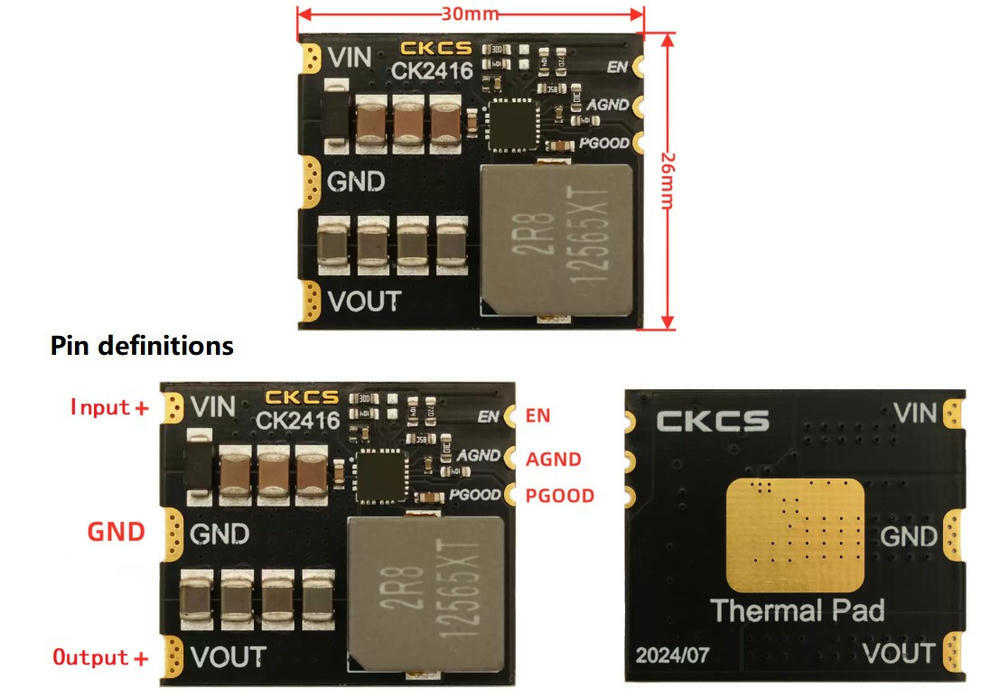

Figure: Pin and Dimension Diagram of DC-DC step-down converter module
- EN: Floating (open) to enable the output, connected to ground to disable the output. It can be controlled by a microcontroller's IO pin with a 1K resistor in series.
- AGND: When control is needed from a microcontroller, connect a single ground point to this pad.
- PGOOD: Outputs a high level (5V) when the output voltage is normal. Outputs a low level (0V) when there is an abnormal output voltage or a short circuit.
Conversion Efficiency

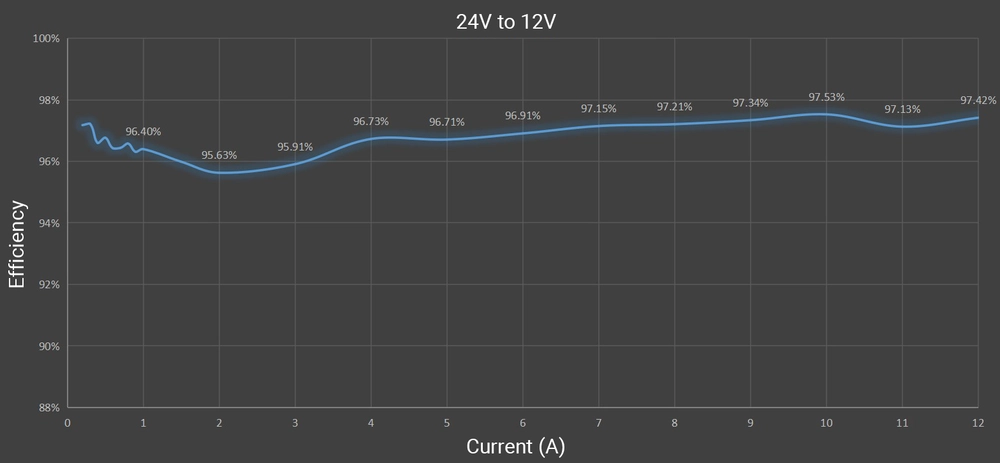

Figure: Conversion efficiency (Input 24V, output 12V, with a load ranging from 1 to 12A)
Applications
- Robotics, for driving motors and servos
- High-power LED lighting systems
- Drones
- Automotive electronics
Specification
- Input Voltage: DC 15~24V
- Output Voltage: DC 12V ±1%
- Max Output Current: 12A
- Output Ripple Noise: ＜50mV (1~12A load)
- Conversion Efficiency: ＞95% (input 24V, load 1-12A)
- Static Current (EN floating): ＜3mA
- Static Current (EN grounded): ＜3µA
- Operating Temperature: -25℃ ~ +70℃
- Output Short Circuit Protection: Yes
- Over-Temperature Protection: 125°C
- Dimensions: 30 x 26 x 8mm
Shipping List
- DC-DC Buck Converter (15~24V to 12V/12A) × 1
