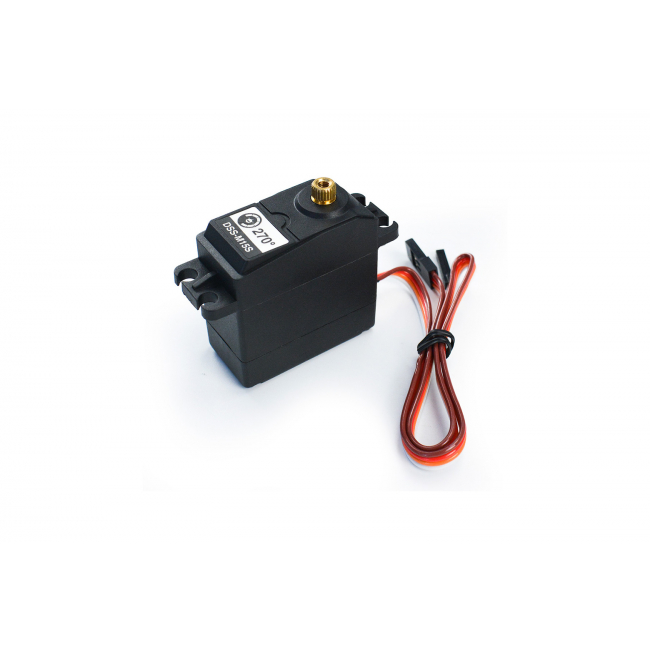

DFRobot - DSS-M15S 270° 15KG DF Metal Servo with Analog Feedback

DSS-M15S servos have been well received by customers in these years. It has extremely wide angle range control, huge load capacity and excellent quality. This DSS-M15S with analog feedback has broken its internal potentiometer signal. This is an analog signal with 0~3.3V feedback. You can connect it to MCU to realize close-loop feedback control.
DSS-M15S 270° Metal servo with feedback is compatible with Arduino Servo library. You can drive it with Arduino Board and read the angle value from analog side.

Electronic specifications

• Operating voltage: 4.8-7.2V

6V test environment

• Operating speed (no load): 0.18 sec/60 degrees
• Resting current: 80mA
• Locking torque: 11.5KG*cm
• Stall current: 1.4A
• Standby current: 4mA

7V test environment

• Operating speed (no load): 0.16sec/60 degrees
• Resting current: 100mA
• Locking torque: 12KG*cm
• Stall current: 1.76A
• Standby current: 5mA

Mechanical specifications

• Gear material: metal gear
• Operating angle: 270 degrees
• Wiring gauge: 28PVC
• Data line length: 320mm
• Gear bracket spline: 25T/5.80
• Gear ratio: 310:1
• Size: 54.5*20*47.5mm

Control specifications

• Feedback signal: 0-3.3V
• Control signal: RC PWM
• Pulse range: 500-2500 us
• Median signal value: 1500us
• Clockwise rotation:
• Control frequency: 50-330Hz (Arduion compatible)
