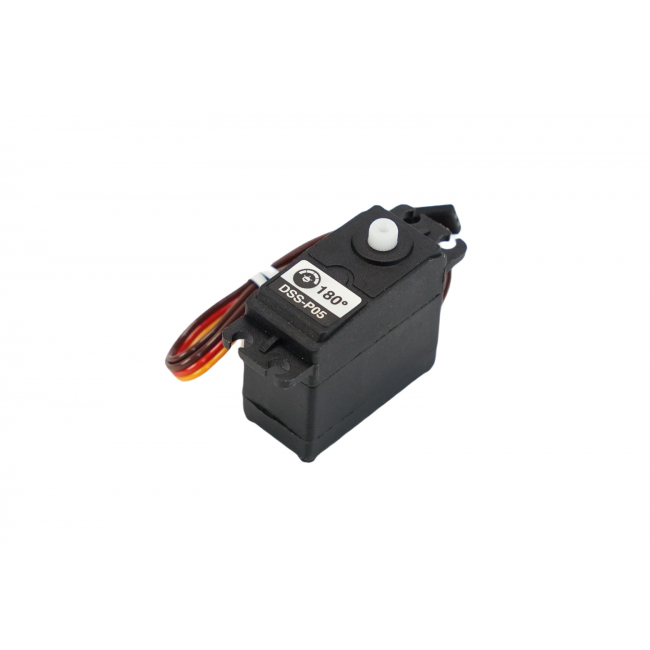

DFRobot - DSS-P05 Standard Servo (5.1kg)

DSS-P05 Standard Servo high torque servo, suitable for the production head, arm, biped robot, etc.

Note: DF05BB has been replaced by DSS-P05 standard servo.

• Voltage: +4.8-6.0 V
• Running current (at no load): 20mA@ 4.8V  25mA@ 6V
• Stall current (at locked): 300mA@ 4.8V  350mA@ 6V
• Rotation Degree: 180 Degree
• Torque Size: 3.5kg · cm (4.8V); 4.5kg · cm (6.0V)
• No load speed: 0.17 seconds / 60 degrees (4.8V); 0.12 sec / 60 degrees (6.0V)
• Operating temperature: 0 ℃ ~ 60 ℃
• Dead Set: 20us
• Size: 40.2 X 20.2 X 43.2mm
• Weight: 38±1g

• DSS-P05 Standard Servo (5.1kg)  x1
