DFRobot - ESP32-S2-DevKitC-1-N8R2 Development Board
£16.32
£13.60
The ESP32-S2-DevKitC-1 is an entry-level development board equipped with the ESP32-S2-SOLO module. Most pins of the on-board module are led out to the pin headers on both sides, allowing developers to easily connect various peripheral devices via jumpers according to actual requirements, and the development board can also be used by plugging it into a breadboard.
SKU
DF-DFR0813
Introduction
The ESP32-S2-DevKitC-1 is an entry-level development board equipped with the ESP32-S2-SOLO module. Most pins of the on-board module are led out to the pin headers on both sides, allowing developers to easily connect various peripheral devices via jumpers according to actual requirements, and the development board can also be used by plugging it into a breadboard.
The ESP32-S2-SOLO is a general-purpose Wi-Fi MCU module integrated with ESP32-S2, which adopts a PCB on-board antenna.

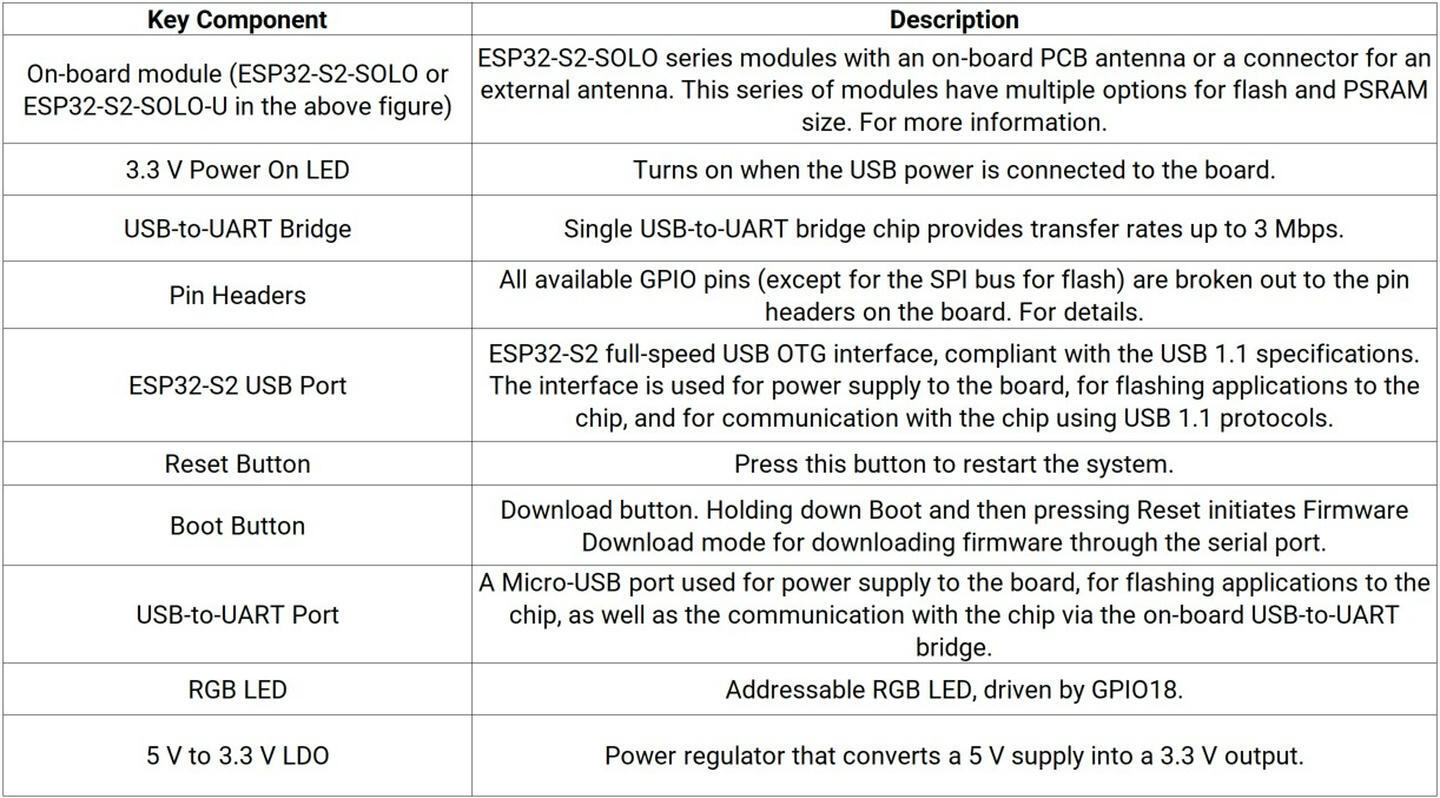

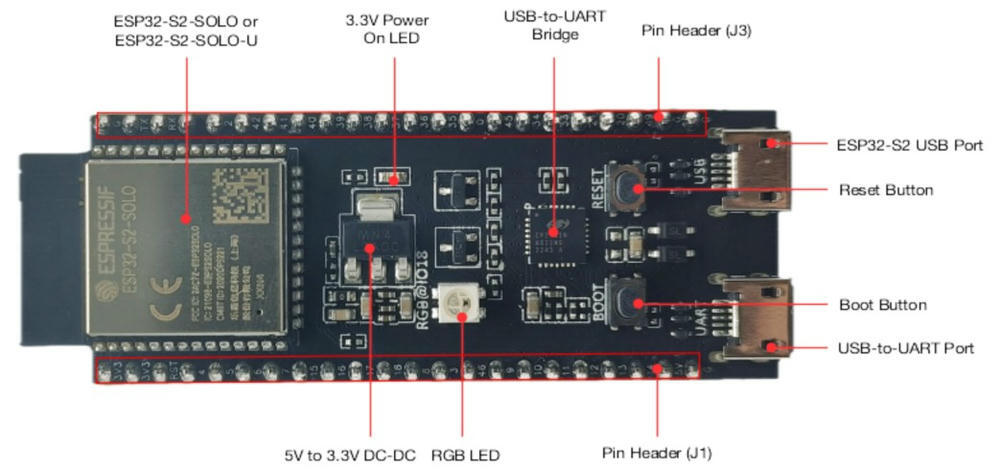

Component Introduction

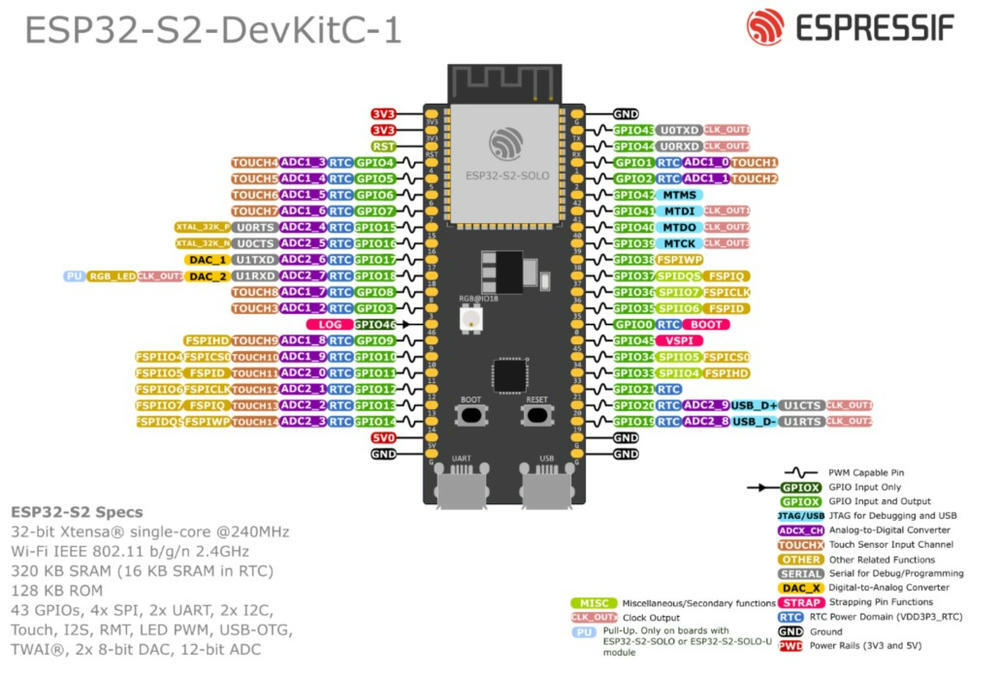

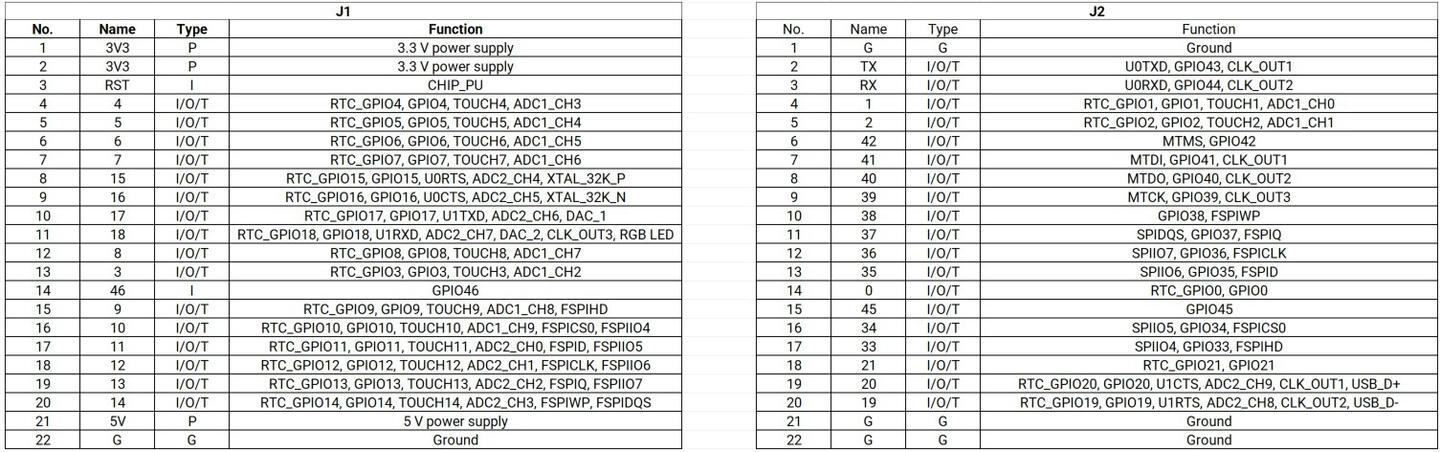

Figure: Pinout of ESP32-S2-DevKitC-1-N8R2 Development Board
Specification
- Integrated chip: ESP32-S2 or ESP32-S2R2, Xtensa® single-core 32-bit LX7 microprocessor
- 128KB ROM
- 320 KB SRAM
- 16 KB RTC SRAM
- 40 MHz integrated crystal oscillator
- Operating Voltage / Supply Voltage: 5V
- Recommended Operating Temperature Range: –40~85°C
Shipping List
- ESP32-S2-DevKitC-1 ×1
| Manufacturer | DFRobot |
|---|
