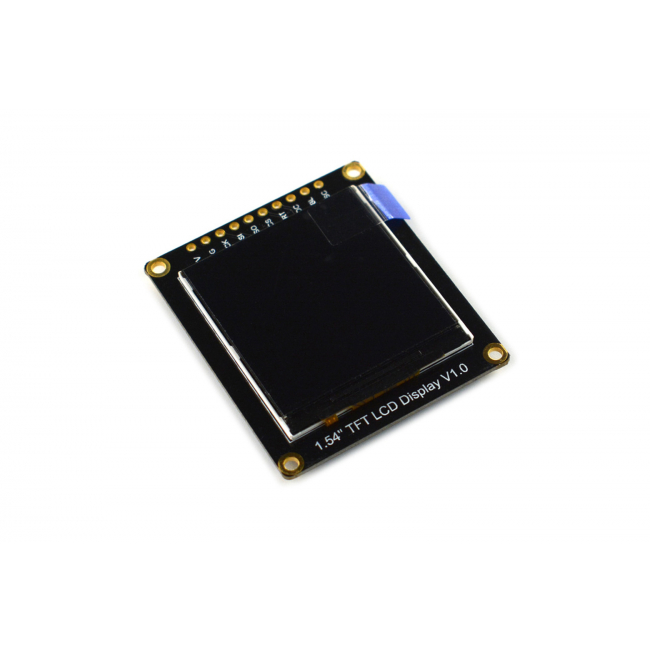

DFRobot - Fermion: 1.54" 240x240 IPS TFT LCD Display with MicroSD Card (Breakout)

This display module features high resolution, low power consumption, wide-angle and easy wiring. With a small size of 1.54”, it offers 240x240 resolution. The module employs the IPS screen, which performs excellently in the view angle (80/80/80/80). It supports SPI(4-wire) communication mode and GDI port (work with main-controllers with GDI port), plug, and play. This product can be used in many display applications: waveform monitor display, electronic gift box, electronic weather decorations, etc.

The 1.54” LCD module can be powered by 3.3V~5V, and the maximum power consumption is about 24Ma. It is compatible with multiple main-controllers like UNO, Leonardo, ESP32, ESP8266, FireBeetle M0, etc. When working with M0, the GDI interface should be used, which could effectively reduce wiring steps. Besides, there is an onboard MicroSD card slot for displaying more pictures.

Note: MicroSD Card is not included, click here to buy one.

• Wide Angle of View
• High Resolution
• GDI Interface: plug and play
• Onboard MicroSD card slot

• Wearable devices
• MP3/MP4
• Weather Display

• Operating Voltage: 3.3V~5V
• IPS Angle of View: 80/80/80/80
• Color Depth: 16-bit (RGB565)
• Pixels: 240 × 240
• Connection Port: SPI
• Driver Chip: ST7789
• Brightness: 250 (Typ) cd/m2
• Full-screen Power Consumption: about 17mA(3.3V) 17mA(5V)(Typ)
• Operating Temperature: -30℃~+70℃
• Display Area: 27.72×27.72 mm
• Mount Hole Diameter: 2mm
• Weight: 19g

• 1.54”240x240 IPS TFT LCD Display with MicroSD Card Breakout x1
• 2.54-10P Single-row Black Pin x1
• FPC0.5-18PIN Flex Flat Cable Reverse Direction 10cm x1
