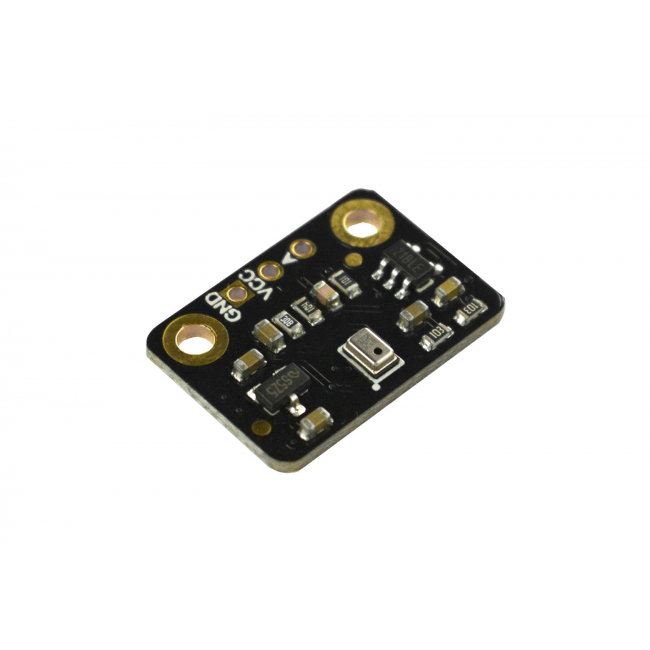

DFRobot - Fermion: MEMS Microphone Module - S15OT421(Breakout)

This tiny MEMS microphone has an amplifier gain of 66. When there is no sound detected, it outputs voltage around 1.5V. When speaking, you can easily get the acoustic waveform by ADC sampling. The module can be used on all kinds of 3.3V/5V main controllers.

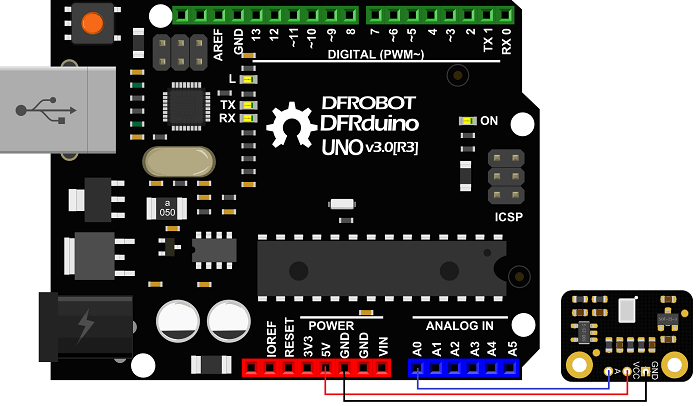

Connection Diagram

• Signal Type: Analog signal
• Power Supply: 3.3V/5V
• Directivity: All-round
• Sensitivity: -42dB
• S/N Ratio: 59dBA
• Frequency Range: 100Hz~8KHz
• Dimension: 18*12.5 mm/ 0.71*0.49”

• Fermion: MEMS Microphone Module ×1
• 2.54-3P Black Single Row Pin Header ×1
