DFRobot - Fermion: SHT35 Digital Temperature & Humidity Sensor (Breakout)
£15.32
£12.77
- High precise, internal auto-calibrated, digital output
- Low power consumption, fast response, and strong anti-interference
- Compatible with 3.3V/5V controllers
SKU
DF-SEN0333
Introduction

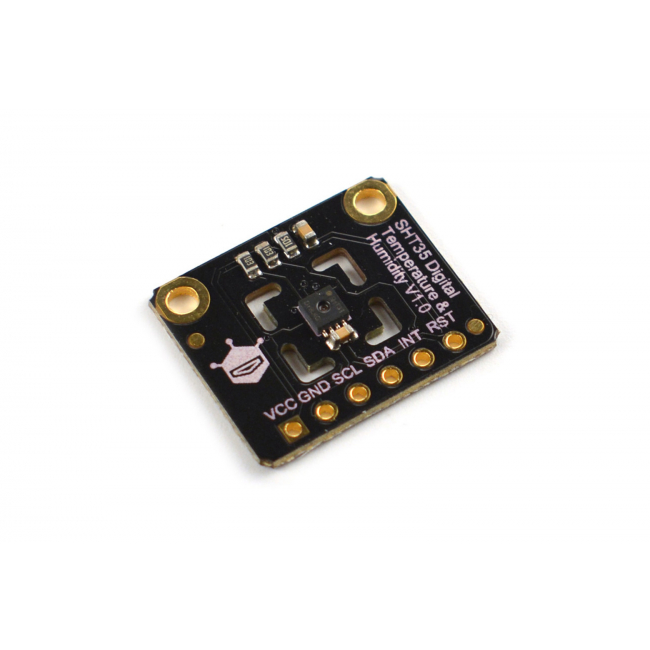

This Digital Temperature & Humidity Sensor Breakout Board is based upon the Sensirion SHT35 sensor IC. Thanks to Sensirion’s CMOSens® technology, highly integrated capacitive humidity sensing components and band-gap temperature sensing components, the SHT35 offers high reliability and long-term stability with low power consumption, fast response and strong anti-interference ability. The sensor supports I2C communication, and is compatible with 3.3V/5V controllers like Arduino, micro:bit, ESP32. It is easy to achieve precise and high-reliability temperature and humidity sensing for urban environment monitoring, intelligent buildings, industrial automation, smart home and other Internet of Things applications.
SHT35 is the high-end version of the SHT3x series. It provides humidity accuracy ±1.5%RH @ 0%RH~80%RH (at 25°C), and temperature accuracy±0.2°C@ -40℃-90℃ (typical).
| Digital Temperature and Humidity Sensor Selection Guide | ||||
| Product Name | SHT30 | SHT31 | SHT31-F | SHT35 |
| SKU | SEN0330 | SEN0331 | SEN0332 | SEN0333 |
| IC Type | SHT30-DIS-B | SHT31-DIS-B | SHT31-DIS-F | SHT35-DIS-B |
|
Typ. RH
Accuracy (%RH)
|
±2@10-90%RH | ±2@0-100%RH | ±2@0-100%RH | ±1.5@0-80%RH |
|
Typ.
Temperature (°C)
|
±0.2@0-65℃ | ±0.2@0-90℃ | ±0.2@0-90℃ | ±0.1@20-60℃ |
| Price | $6.9 | $8.9 | $9.7 | $16.9 |
| Feature | Cheap | Cost-Effective | IC Dustproof | High Accuracy |
Features
- High precise, internal auto-calibrated, digital output
- Low power consumption, fast response, and strong anti-interference
- Compatible with 3.3V/5V controllers
Applications
- Urban Environmental Monitoring
- Intelligent Building, Smart Home
- Grain Storage
- Plant and animal breeding system
Specification
- Operating Voltage: 2.15~5.5V
- Operating Current:
- Humidity Detection Range: 0%RH~100%RH
- Humidity Accuracy: ±1.5%RH@0%RH~80%RH（at 25℃）
- Temperature Detection Range: -40℃~125℃
- Temperature Accuracy: ±0.2℃@-40℃~90℃ (Typical)
- Communication: I2C
- Outline Dimension: 19x16mm/0.75x0.63”
- Mounting Hole Size: 2mm/0.08”
- Mounting Hole Pitch: 15mm/0.59”
Shipping List
- DFRobot SHT35 Digital Temperature and Humidity Sensor x1
- Black 2.54-6P Single Row x1
Documents
Certifications
- CE CE
- RoHS RoHS
| Manufacturer | DFRobot |
|---|
