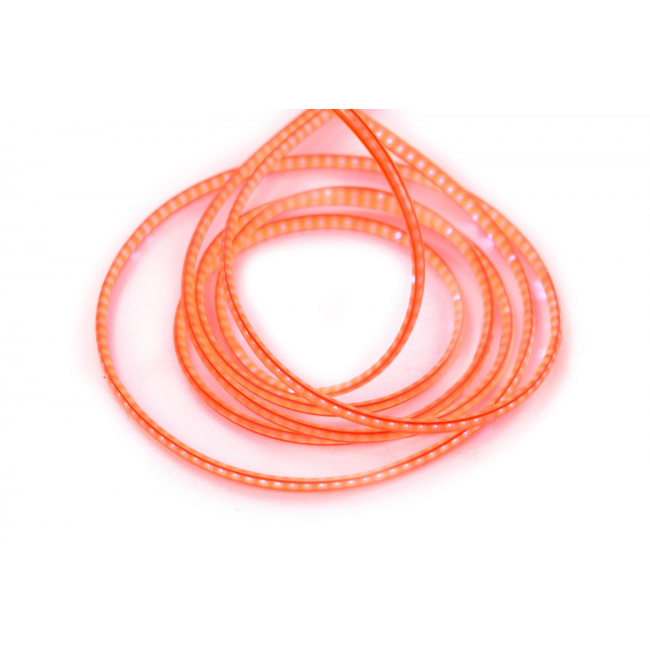

DFRobot - Flexible LED Filament (24V 1200mm, Red)

Measuring 1200mm in length with a 2mm diameter, this flexible filament has 640 LEDs that can be used for DIY lighting decoration and 360° all-angle lighting fixtures. It comes with adjustable brightness and requires a 21-24V power supply, with the positive electrode at the small round hole end and the negative electrode at the non-porous end. Its flexible design allows it to be bent and folded according to your needs, providing 360-degree light coverage.

Note: A power supply of 21-22V is recommended for prolonged use to avoid damage due to excessive heat.

Figure: Dimension

Figure: Flexible LED Filament Lighting Effects

Clicking the image will take you to the corresponding product page.

• 1200mm in length, high brightness, suitable for DIY
• 21-24V power supply, adjustable brightness
• Compact size, positive and negative poles identified
• Flexible filament, can be bent and folded as desired
• Long lifespan of 5000-10000 hours

• E-Textiles (smart fabrics): Incorporate electronic functionality.
• LED filament light bulbs: Resemble traditional incandescent light bulbs with visible filaments for aesthetic and light distribution purposes but with the high efficiency of light-emitting diodes (LEDs) .

• Length: 1200mm
• Emitting Color: Red
• Color Rendering Index: 80
• Luminous Flux: 500lm
• Supply Voltage: 21-24V
• Working Current: 300mA @ 22V
• Power: 6.6W @ 22V
• Operating Temperature: -30 to +55°C
• Storage Temperature: -10 to +40°C
• Storage Humidity: 60%RH
• Lifespan: 5000-10000 hours

• 24V 1200mm LED Flexible Filament (Red) x1
