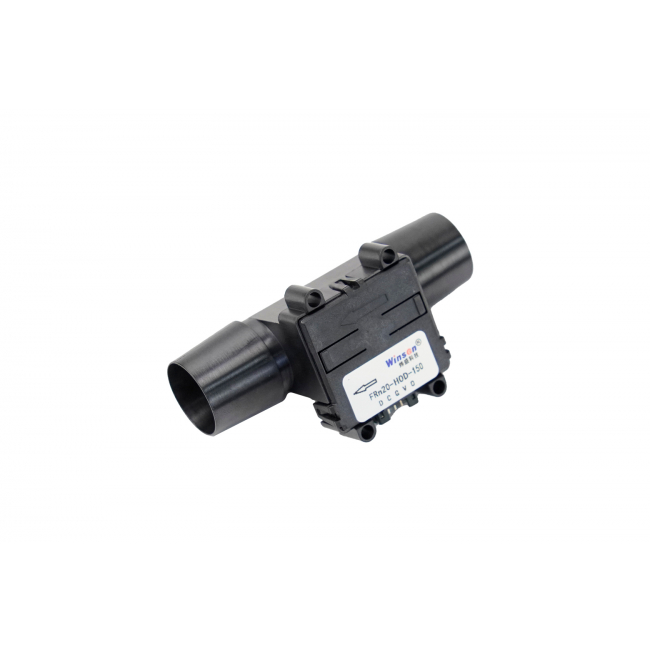

DFRobot - FRn20-H0D Mass Air Flow Sensor

The FRn20 gas flow sensor adopts the MEMS thermal principle to measure the flow rate of gaseous media inside pipelines. Boasting high sensitivity and an ultra-low startup flow rate, it supports optional I2C or analog voltage output with excellent full-scale stability and repeatability. It is applicable to ventilators, air purifiers and other related equipment.

• High precision, fast response, good repeatability
• Completely calibrated and temperature compensated

• Intensive care ventilator
• Portable ventilator
• Industrial process control
• Environment protection
• Air purifier

• Measuring Range: 150SLM (SLM: standard litre per minute. Standard-state: 20℃ gas temperature and 101.325 kPa gas pressure)
• Power Supply: 5-15V
• Operating Current: 30mA
• Accuracy: ±(2+0.5FS)
• Response Time: 50ms
• Operating Temperature Range: 0℃~50℃
• Working Pressure: ＜200kPa

• FRn20-H0D Mass Air Flow Sensor x1
