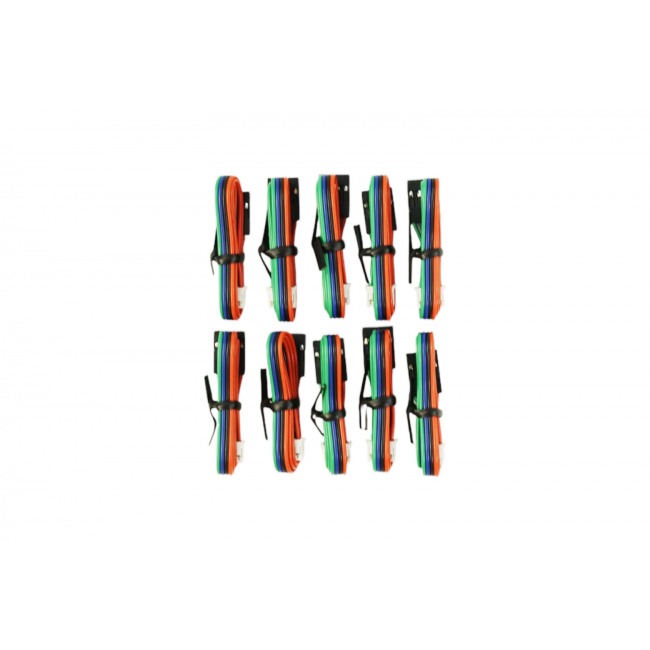

DFRobot - Gravity: 4Pin I2C/UART Sensor Cable (10PCS)
£5.44
£4.53
The Gravity 4Pin I2C/UART sensor cable is a standard Gravity series 4-Pin cable with 30cm length. One side is PH2.0-4p connector and the other side is XH2.54 DuPont port. it is compatible with standard breadboard pin pitch, which makes it easy to make a DIY application.
SKU
DF-FIT0513
Introduction
The Gravity 4Pin I2C/UART sensor cable is a standard Gravity series 4-Pin cable with 30cm length. One side is PH2.0-4p connector and the other side is XH2.54 DuPont port. it is compatible with standard breadboard pin pitch, which makes it easy to make a DIY application.
The cable uses the colorcoded design to distinguish between the positive and negative power supply, I2C SDA SCL, UART RX TX. Easy to recognize and use.
Specification
- Withstand Voltage: 50V
- Withstand Current: 1000mA
- Length: 30cm
- I2C/UART Pin Order: Red --- VCC
- Black --- GND
- Blue --- SCL/RX
- Green --- SDA/TX
Shipping List
- Gravity 4Pin I2C/UART Sensor Cable x10
| Manufacturer | DFRobot |
|---|
