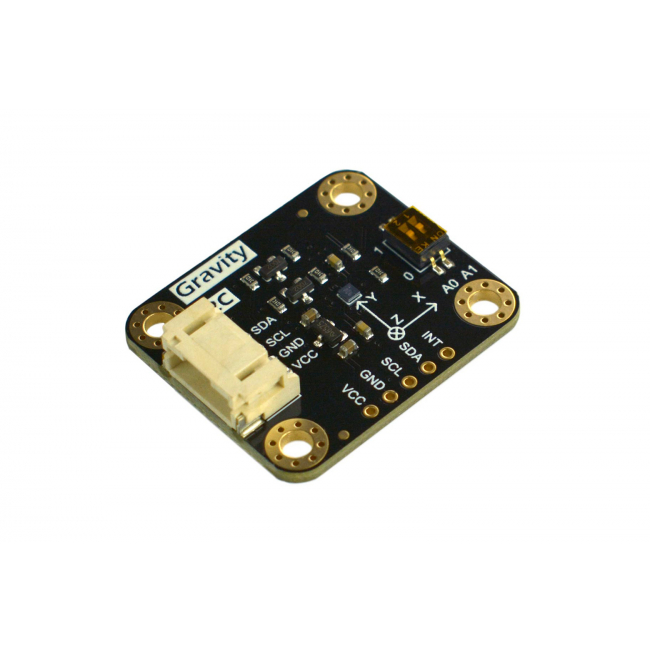

DFRobot - Gravity: BMM150 Triple Axis Magnetometer Sensor

BMM150 is a low-power and low-noise 3-axis geomagnetic sensor from Bosch for compass applications. It allows measurements of the magnetic field and compass angle in three perpendiculars within a measuring range of ±1300uT on X and Y axis and ±2047uT on Z axis.

Featuring small size and lightweight, the sensor has a 2-bit DIP switch for I2C address setup, and 4 addresses are available. Based on Bosch's proprietary FlipCore technology, the performance and features of BMM150 are carefully tuned and thus can offer absolute spatial orientation without calibration, perfectly matching the requirements of all 3-axis mobile applications such as robot navigation & positioning, electric compass, electric map, navigation or augmented reality.

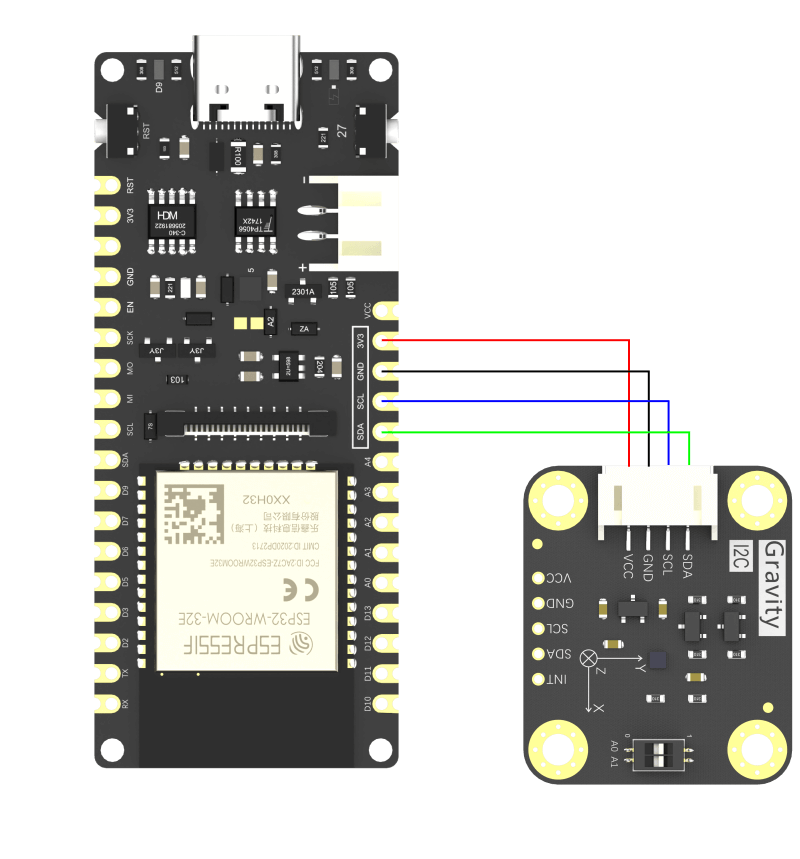

Connection Diagram with FireBeetle 2 ESP32-E IoT Microcontroller

• Programmable interrupt pin
• Configurable four I2C addresses
• Low noise(0.3-1.4uT)
• High accuracy(30μT horizontal geomagnetic field component, ±2.5°)

• Drones
• Compass
• Indoor/Outdoor Navigation
• Head Motion Tracking
• Augmented Reality
• Tilt-compensated Electric Map

• Power Supply: 3.3V-5V
• Operating Temperature: -40 to 85°C
• Communication: I2C
• Resolution: 0.3μT
• Zero Offset: ±40μT/±2μT (software optimized)
• Non-linearity: ＜1%FS
• Measuring Range: ±1300μT (x & y axis), ±2047μT (z-axis)
• Operating Current: 1.7mA@ frequency 10Hz
• Low Noise: 0.3-1.4μT
• Accuracy: 30μT horizontal geomagnetic field component, ±2.5°
• Start-up Time: 3ms

• Gravity: BMM150 Triple Axis Magnetometer Sensor ×1
• Gravity-4P I2C/UART Sensor Cable ×1
• Black Single-row Pin Header-5PIN ×1
