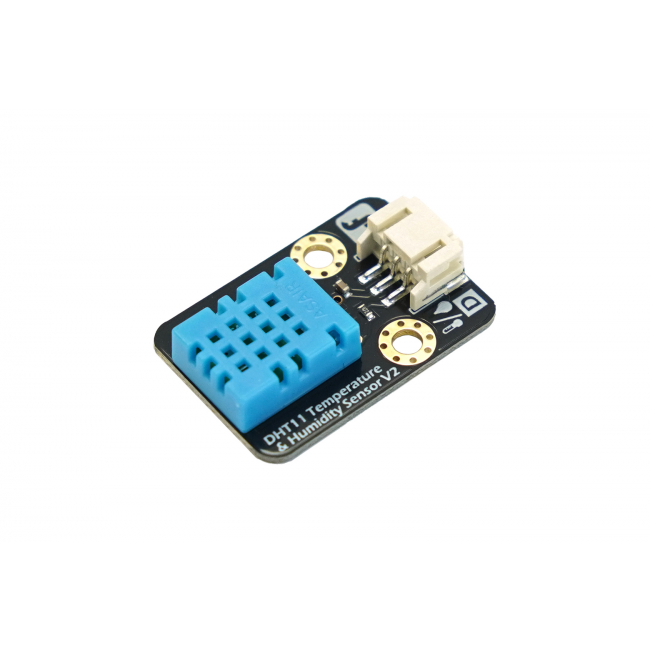

DFRobot - Gravity: DHT11 Temperature & Humidity Sensor For Arduino

DFRobot's latest generation of digital DHT11 Temperature and Humidity sensor is as powerful as it used to be but easier to use.  This  DHT11  Arduino  temperature and humidity sensor has a full range temperature compensation, low power consumption, long term stability and calibrated digital signal. A high-performance 8-bit microcontroller is integrated in the sensor with calibration-coefficient saved in OTP memory to provide accurate temperature readings.

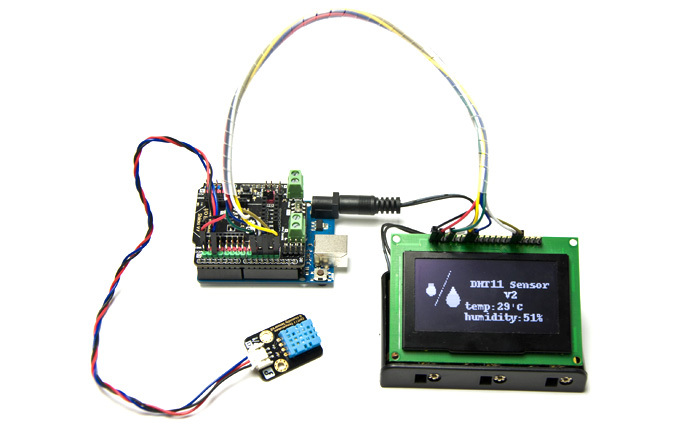

To ease the difficulty,  a Gravity Interface is adapted to allow plug&play. The Arduino IO expansion shield is the best match to connect with your Arduino. As this sensor can work at 3.3V which make it compatible with Raspberry Pi,  intel edison, joule and curie.

Selection Guide

Product Name

Gravity: DHT11 Temperature & Humidity Sensor For Arduino

Gravity: DHT20 Temperature & Humidity Sensor for Arduino

Gravity: DHT22 Temperature & Humidity Sensor

Figure

SKU

DFR0067

SEN0497

SEN0137

Communication Method

One wire

I2C

One wire

Operating Voltage

3.3-5V

3.3-5V

5V

Temperature range ± error

0~+50 ± 2 ℃

-40~+80 ± 0.5℃

-40~+80 ± 0.5℃

Humidity range ± error

20~90% ± 5%RH

0~100% ± 3%RH

0~100% ± 2%RH

Introduction

Classic temperature and humidity sensor, low price, suitable for designs with low accuracy requirements

High-precision temperature and humidity sensor, DHT11 upgrade version, the same price but improved performance, using I2C communication, data is more stable

High-precision temperature and humidity sensor, high price, high detection range and accuracy

Add to Cart

• Standard assembling struct ( two 3mm holes with multiple of 5cm as interval ).
• User-friendly interfaces ( "A" for analog and "D" for digital ).
• Icons to simplely illustrate sensor function.
• High quality connector.
• Immersion gold surface.

• Standard assembling struct ( two 3mm holes with multiple of 5cm as interval ).
• User-friendly interfaces ( "A" for analog and "D" for digital ).
• Icons to simplely illustrate sensor function.
• High quality connector.
• Immersion gold surface.

• Wider voltage range: 3.3V to 5V
• Temperature range :0-50 °C error of ± 2 °C
• Humidity :20-90% RH ± 5% RH error
• Interface: Digital

• Gravity: DHT11 Temperature & Humidity Sensor For Arduino x1
• Digital sensor cable x1
