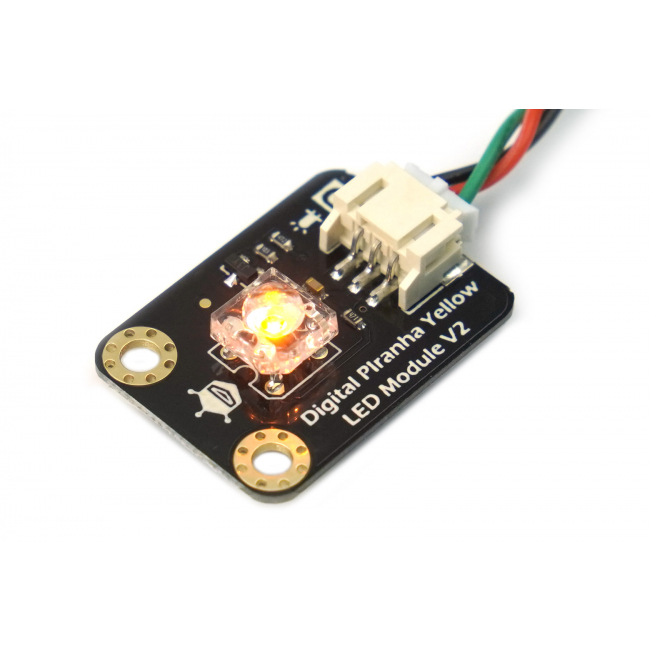

DFRobot - Gravity: Digital piranha LED module - Yellow

Piranha LED light module, and special sensors Arduino board and ambient light sensor extension combination, can be used in the interaction with the light works.

When the LED light module connected to Arduino, the digital pin (LOW on, HIGH off)  is used to control it. The brightness of LED can be controller via PWM output.

The LED has four colors Red/Blue/Whilt/Yellow to select.

• Voltage: 3.3~5v
• Light color: Yellow
• Wavelength: 585~594nm
• Viewing angle: 65°
• Size: 30x22mm
• Weight: 5g
• Pin Definition
        Digital control pin (support PWM)
        Power Supply
        GND

• LED light module-Yellow x1
• Digital Cable (SKU:FIT0011) x1
