DFRobot - Gravity: DSS-P05 Tilt / Pan Kit (4.5kg)

The two-degree-of-freedom DSS-P05 servo gimbal is a high-value, small-scale gimbal boasting a considerable torque of 4.5 kilograms. It can execute two degrees of freedom movements in both horizontal and vertical directions, facilitating the convenient installation of cameras. This enables image surveillance, as well as image recognition and tracking. By integrating an infrared sensor or an ultrasonic distance-measuring sensor, it can be transformed into a comprehensive detection device, allowing robots to perceive surrounding obstacles and thereby enabling obstacle avoidance. Of course, it can also accommodate various sensors, and through the Arduino controller, it can facilitate the creation of numerous innovative interactive works.

Please note: The DSS-P05 servo has superseded the previous version, the DF05BB. Due to the hardware constraints of the servo and U-shaped bracket in the horizontal position post-assembly, the product cannot achieve 0-360° rotation in the vertical direction.

• Voltage: + 4.8～6.0V
• Idle Current: 20mA (4.8V), 25mA (6.0V)
• No-load Speed: 0.14 seconds/60 degrees (4.8V), 0.12 seconds/60 degrees (6.0V)
• Torque: 3.5 kg/cm (4.8V), 4.5 kg/cm (6.0V)
• Operating Temperature: -10℃~60℃
• Servo Wire Sequence: Brown wire for power negative, Red wire for power positive, Yellow wire for control signal.
• Dimensions: 40X20X44.5mm

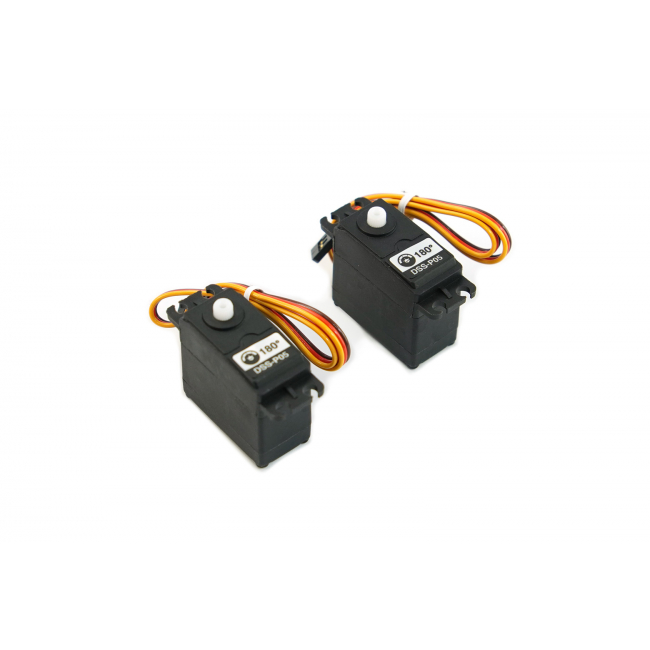

• DSS-P05 Standard Servo x2
• Aluminum multifunction bracket x1
• Aluminum U-shape bracket x1
• Bearing cup x1
• High-quality sets of screw nuts x1
